Type 1, Wireway Fittings

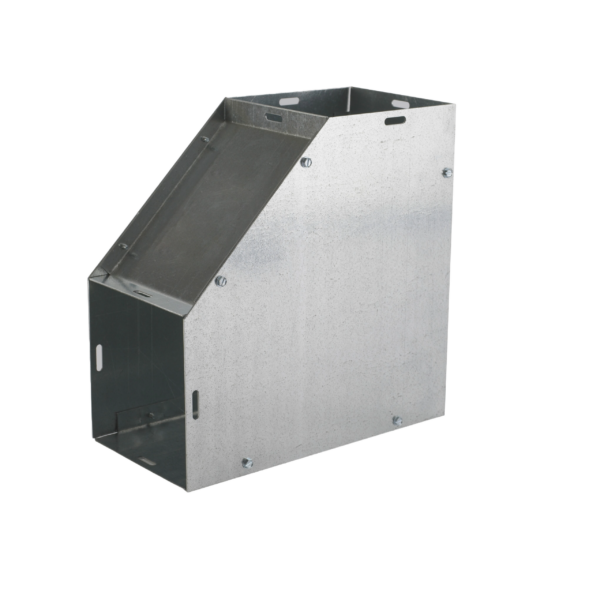

TYPE 1 GALVANIZED 90L FOR WIREWAY
Construction:- THIS FITTING CAN BE OPENED ON ANY SIDE TO PERMIT THE LAYING IN OF ENTIRE RUNS OF WIRING
- REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS
- CODE GAUGE G-90 GALVANIZED STEEL
- TYPE 1 WIREWAY FITTINGS ARE PROVIDED IN G-60 or G-90 GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
For large quantities or custom sizes call factory

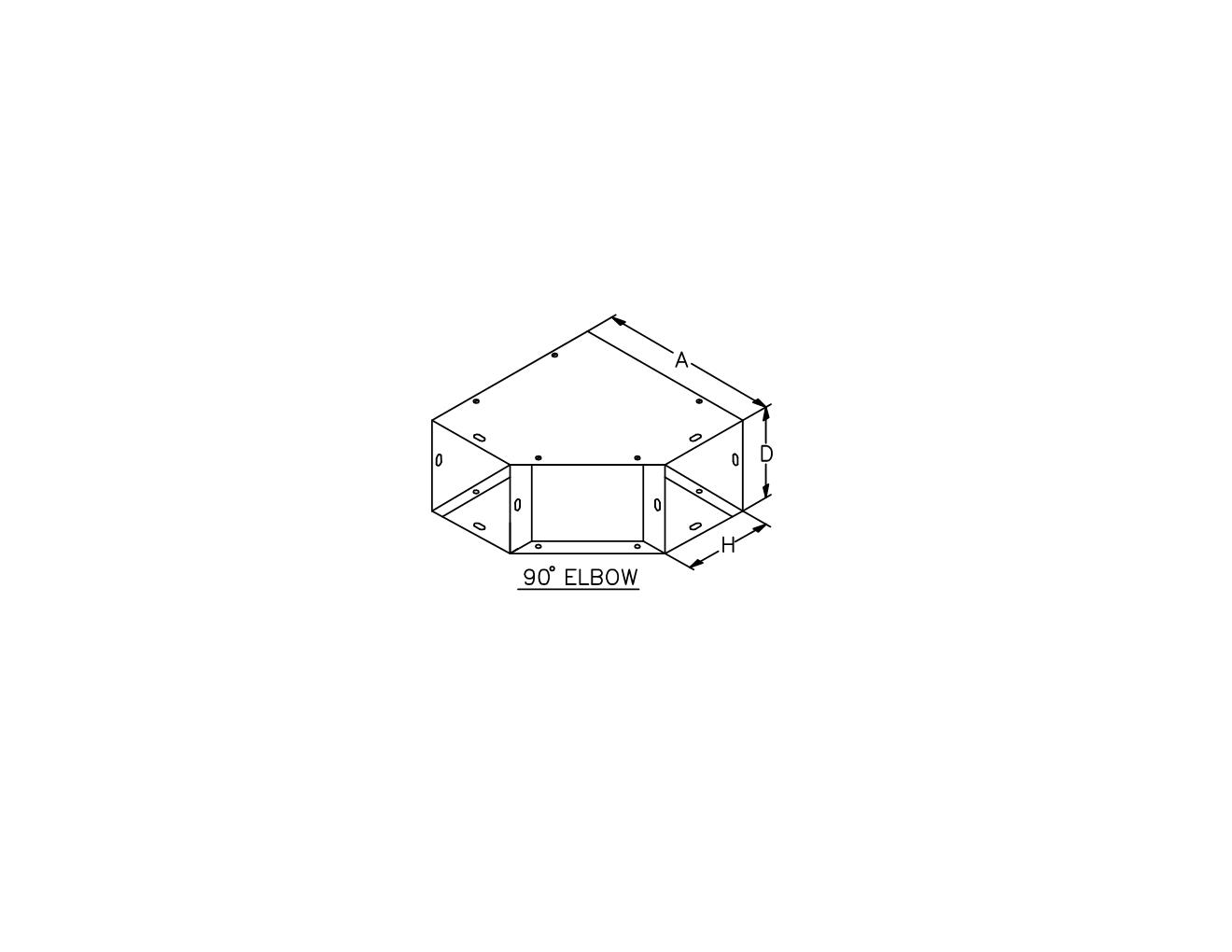

| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-90L | 5 lbs | 806101008460 |
| 6x6 | 6-90L | 7 lbs | 806101008651 |
| 8x8 | 8-90L | 12 lbs | 806101008842 |
| 10x10 | 10-90L | 18 lbs | 806101009030 |
| 12x12 | 12-90L | 24 lbs | 806101009221 |
| 14x14 | 14-90L | 28 lbs | |
| 16x16 | 16-90L | 32 lbs | |
| 18x18 | 18-90L | 36 lbs | |
| 24x24 | 24-90L | 48 lbs |
