Wireway Fittings, Type 1

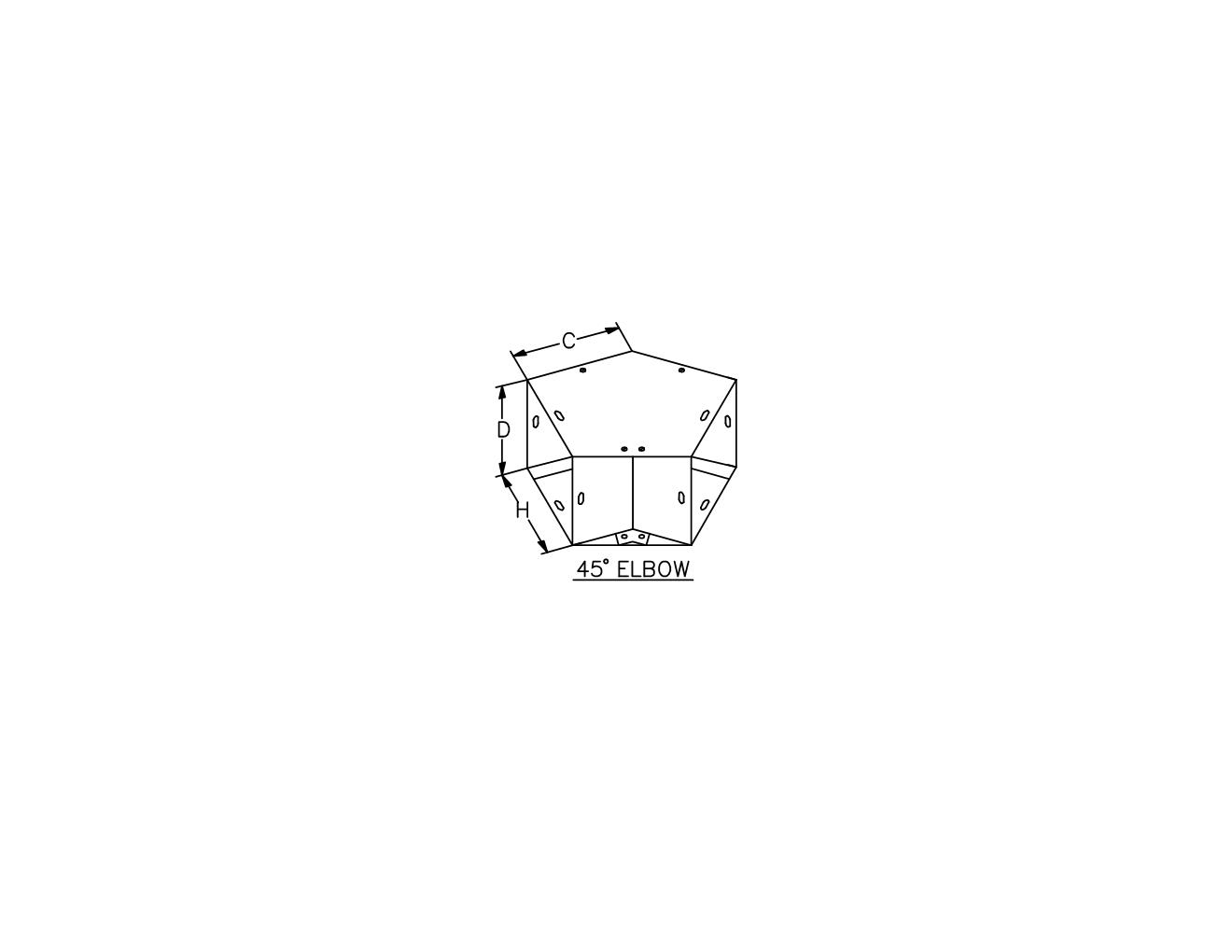

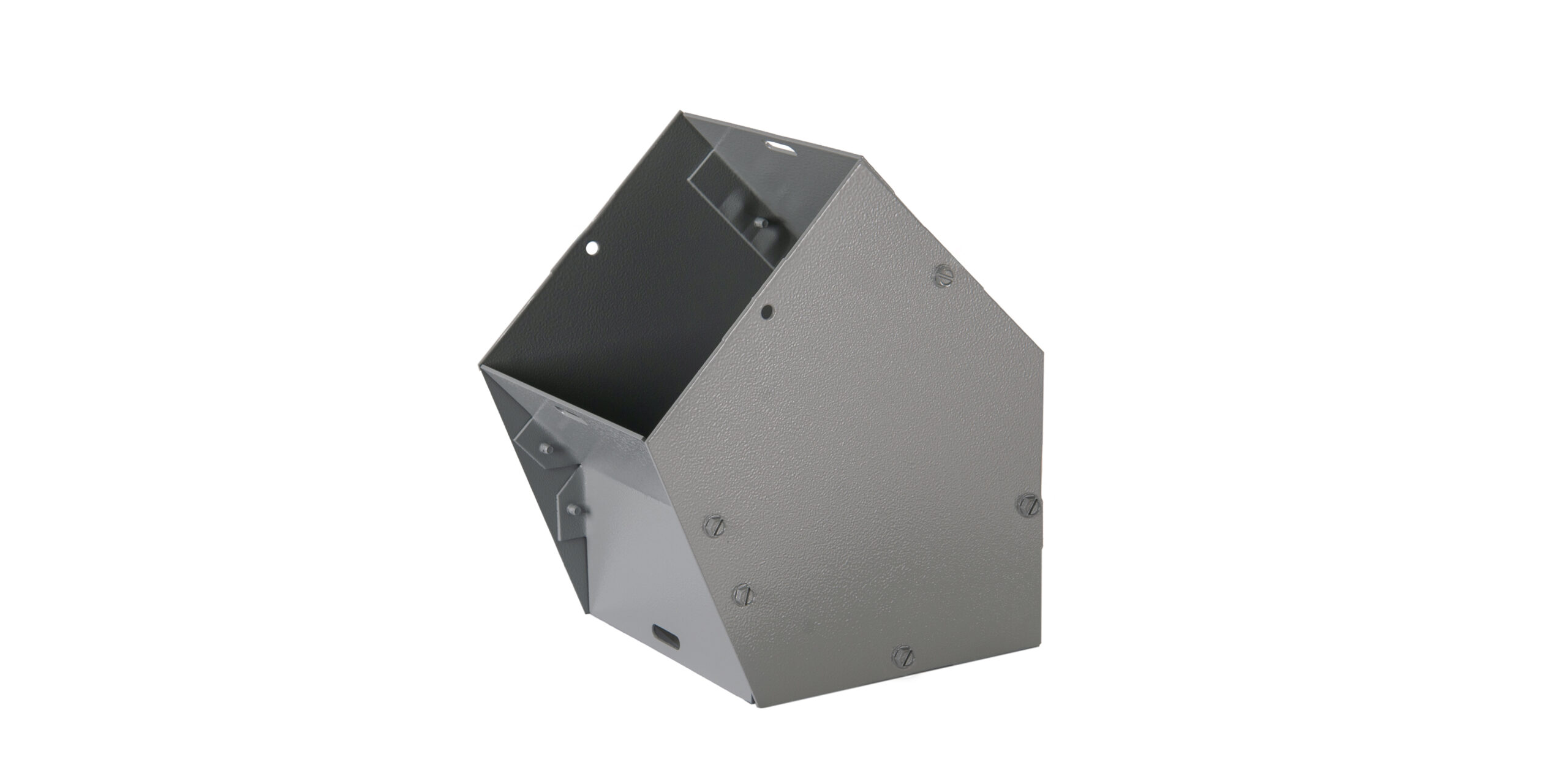

TYPE 1 PAINTED 45L FOR WIREWAY
Construction:- CODE GAUGE A-60 GALVANIZED STEEL
- THIS FITTING CAN BE OPENED ON ANY SIDE TO PERMIT THE LAYING IN OF ENTIRE RUNS OF WIRING
- REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
Select your size
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-45LP | 4 lbs | 806101024613 |
| 6x6 | 6-45LP | 6 lbs | 806101024712 |
| 8x8 | 8-45LP | 10 lbs | 806101024811 |
| 10x10 | 10-45LP | 14 lbs | 806101024910 |
| 12x12 | 12-45LP | 19 lbs | 806101025016 |
