Products, Type 1

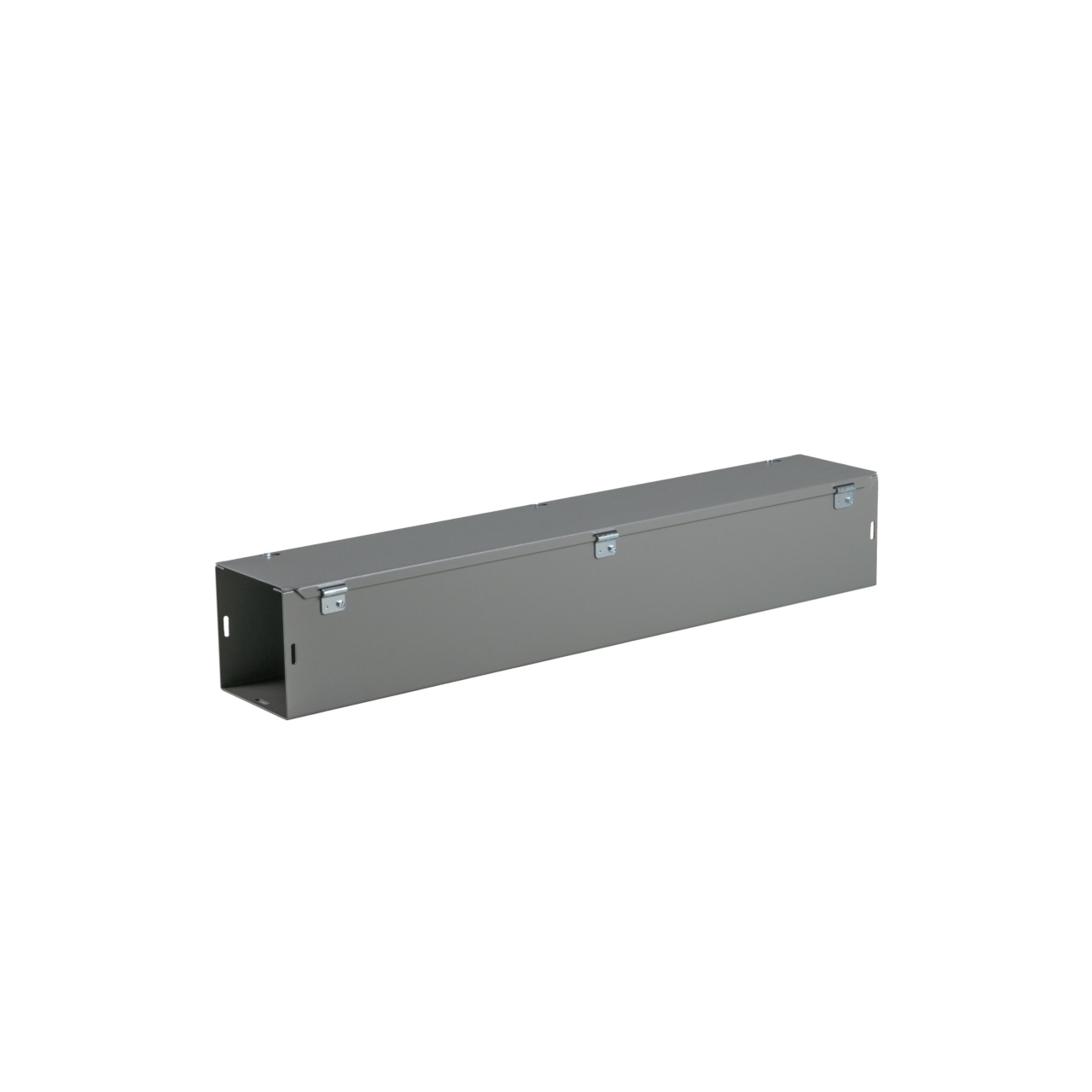

TYPE 1 PAINTED HINGED COVER WIREWAY NO KO’S
Construction:- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- HINGED COVERS ARE FASTENED WITH PLATED STEEL SCREWS
- NO KO'S
- BOLT-ON HINGES
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 12x4x4 | 1-44HWP | 5 lbs | 806101012047 |
| 24x4x4 | 2-44HWP | 10 lbs | 806101012054 |
| 36x4x4 | 3-44HWP | 15 lbs | 806101012061 |
| 48x4x4 | 4-44HWP | 20 lbs | 806101012078 |
| 60x4x4 | 5-44HWP | 25 lbs | 806101012085 |
| 72x4x4 | 6-44HWP | 29 lbs | 806101012092 |
| 84x4x4 | 7-44HWP | 34 lbs | 806101012108 |
| 96x4x4 | 8-44HWP | 39 lbs | 806101012115 |
| 119x4x4 | 10-44HWP | 49 lbs | 806101012122 |
| 12x6x6 | 1-66HWP | 7 lbs | 806101012139 |
| 24x6x6 | 2-66HWP | 14 lbs | 806101012146 |
| 36x6x6 | 3-66HWP | 21 lbs | 806101012153 |
| 48x6x6 | 4-66HWP | 28 lbs | 806101012160 |
| 60x6x6 | 5-66HWP | 35 lbs | 806101012177 |
| 72x6x6 | 6-66HWP | 42 lbs | 806101012184 |
| 84x6x6 | 7-66HWP | 50 lbs | 806101012191 |
| 96x6x6 | 8-66HWP | 57 lbs | 806101012207 |
| 119x6x6 | 10-66HWP | 71 lbs | 806101012214 |
| 12x8x8 | 1-88HWP | 9 lbs | 806101012221 |
| 24x8x8 | 2-88HWP | 19 lbs | 806101012238 |
| 36x8x8 | 3-88HWP | 28 lbs | 806101012245 |
| 48x8x8 | 4-88HWP | 37 lbs | 806101012252 |
| 60x8x8 | 5-88HWP | 46 lbs | 806101012269 |
| 72x8x8 | 6-88HWP | 56 lbs | 806101012276 |
| 84x8x8 | 7-88HWP | 65 lbs | 806101012283 |
| 96x8x8 | 8-88HWP | 74 lbs | 806101012290 |
| 119x8x8 | 10-88HWP | 93 lbs | 806101012306 |
| 12x10x10 | 1-1010HWP | 11 lbs | 806101012313 |
| 24x10x10 | 2-1010HWP | 23 lbs | 806101012320 |
| 36x10x10 | 3-1010HWP | 34 lbs | 806101012337 |
| 48x10x10 | 4-1010HWP | 46 lbs | 806101012344 |
| 60x10x10 | 5-1010HWP | 57 lbs | 806101012351 |
| 60x10x10 | 6-1010HWP | 69 lbs | 806101012368 |
| 84x10x10 | 7-1010HWP | 80 lbs | 806101012375 |
| 96x10x10 | 8-1010HWP | 91 lbs | 806101012382 |
| 119x10x10 | 10-1010HWP | 114 lbs | 806101012399 |
| 12x12x12 | 1-1212HWP | 14 lbs | 806101012405 |
| 24x12x12 | 2-1212HWP | 27 lbs | 806101012412 |
| 36x12x12 | 3-1212HWP | 41 lbs | 806101012429 |
| 48x12x12 | 4-1212HWP | 54 lbs | 806101012436 |
| 60x12x12 | 5-1212HWP | 68 lbs | 806101012443 |
| 72x12x12 | 6-1212HWP | 82 lbs | 806101012450 |
| 84x12x12 | 7-1212HWP | 95 lbs | 806101012467 |
| 96x12x12 | 8-1212HWP | 109 lbs | 806101012474 |
| 119x12x12 | 10-1212HWP | 136 lbs | 806101012481 |
