Products, Type 1

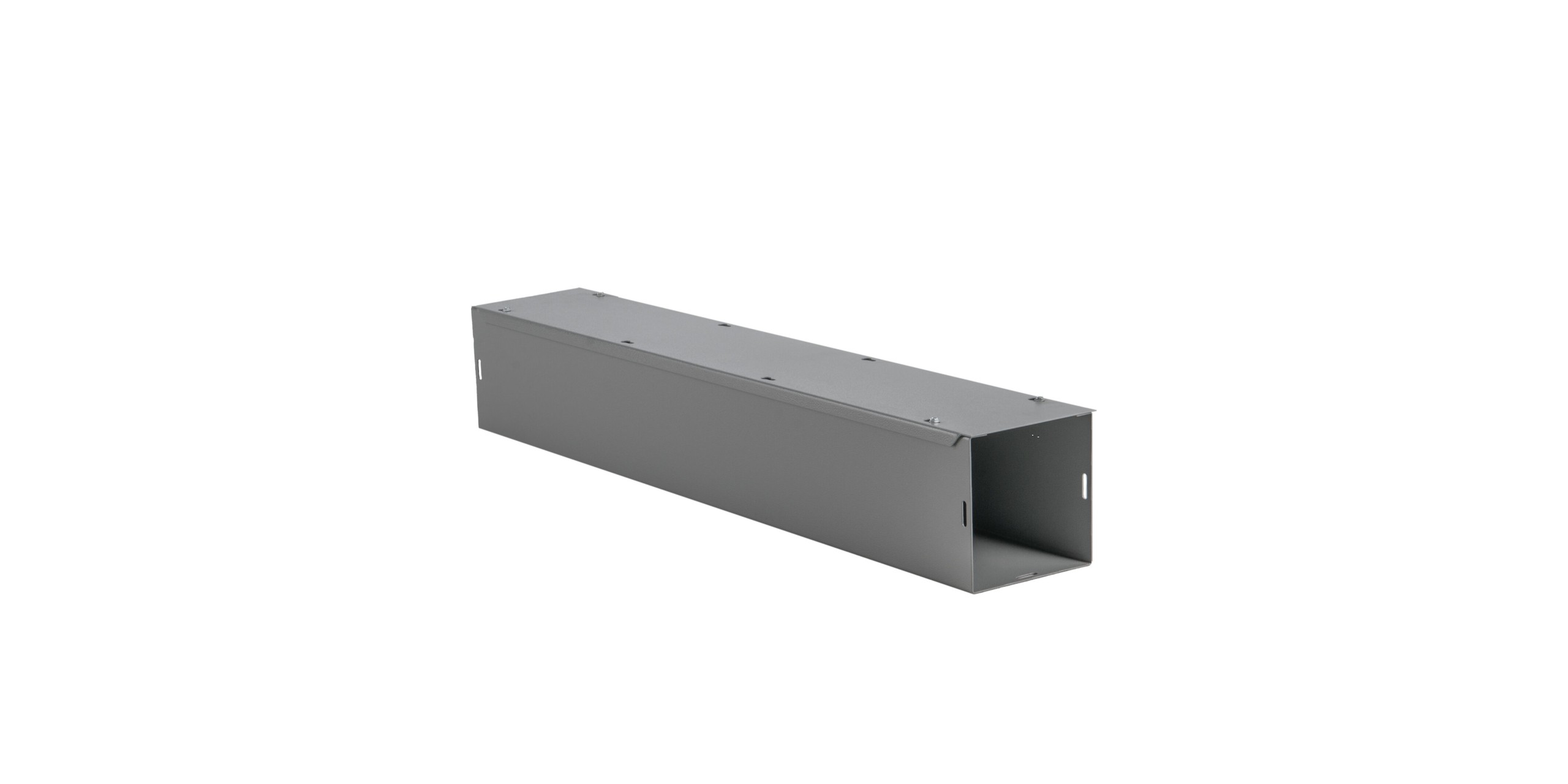

TYPE 1 PAINTED SCREW COVER WIREWAY NO KO’S
Construction:- REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS
- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- KEYHOLE SCREW SLOTS IN THE COVER PERMIT THE REMOVAL OF THE COVER WITHOUT EXTRACTING THE SCREWS
- AVAILABLE IN FLAT COVER UPON REQUEST
- EMBOSSED AND EXTRUDED TAPPED HOLES PROTECTS WIRE FROM DAMAGE BY SCREWS
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
Select your size
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 12x4x4 | 1-44SWP | 5 lbs | 806101010968 |
| 24x4x4 | 2-44SWP | 10 lbs | 806101010975 |
| 36x4x4 | 3-44SWP | 15 lbs | 806101010982 |
| 48x4x4 | 4-44SWP | 20 lbs | 806101010999 |
| 60x4x4 | 5-44SWP | 25 lbs | 806101011002 |
| 72x4x4 | 6-44SWP | 29 lbs | 806101011019 |
| 84x4x4 | 7-44SWP | 34 lbs | 806101011026 |
| 96x4x4 | 8-44SWP | 39 lbs | 806101011033 |
| 119x4x4 | 10-44SWP | 49 lbs | 806101011040 |
| 12x6x6 | 1-66SWP | 7 lbs | 806101011057 |
| 24x6x6 | 2-66SWP | 14 lbs | 806101011064 |
| 36x6x6 | 3-66SWP | 21 lbs | 806101011071 |
| 48x6x6 | 4-66SWP | 28 lbs | 806101011088 |
| 60x6x6 | 5-66SWP | 35 lbs | 806101011095 |
| 84x6x6 | 7-66SWP | 50 lbs | 806101011118 |
| 96x6x6 | 8-66SWP | 57 lbs | 806101011125 |
| 119x6x6 | 10-66SWP | 71 lbs | 806101011132 |
| 48x12x6 | 4-126SWP | 40 lbs | |
| 12x8x8 | 1-88SWP | 9 lbs | 806101011149 |
| 24x8x8 | 2-88SWP | 19 lbs | 806101011156 |
| 36x8x8 | 3-88SWP | 28 lbs | 806101011163 |
| 48x8x8 | 4-88SWP | 37 lbs | 806101011170 |
| 60x8x8 | 5-88SWP | 46 lbs | 806101011187 |
| 72x8x8 | 6-66SWP | 42 lbs | 806101011101 |
| 72x8x8 | 6-88SWP | 56 lbs | 806101011194 |
| 84x8x8 | 7-88SWP | 65 lbs | 806101011200 |
| 96x8x8 | 8-88SWP | 74 lbs | 806101011217 |
| 119x8x8 | 10-88SWP | 93 lbs | 806101011224 |
| 12x10x10 | 1-1010SWP | 11 lbs | 806101011231 |
| 24x10x10 | 2-1010SWP | 23 lbs | 806101011248 |
| 36x10x10 | 3-1010SWP | 34 lbs | 806101011255 |
| 48x10x10 | 4-1010SWP | 46 lbs | 806101011262 |
| 60x10x10 | 5-1010SWP | 57 lbs | 806101011279 |
| 72x10x10 | 6-1010SWP | 69 lbs | 806101011286 |
| 84x10x10 | 7-1010SWP | 80 lbs | 806101011293 |
| 96x10x10 | 8-1010SWP | 91 lbs | 806101011309 |
| 119x10x10 | 10-1010SWP | 114 lbs | 806101011316 |
| 12x12x12 | 1-1212SWP | 14 lbs | 806101011323 |
| 24x12x12 | 2-1212SWP | 27 lbs | 806101011330 |
| 36x12x12 | 3-1212SWP | 41 lbs | 806101011347 |
| 48x12x12 | 4-1212SWP | 54 lbs | 806101011354 |
| 60x12x12 | 5-1212SWP | 68 lbs | 806101011361 |
| 72x12x12 | 6-1212SWP | 82 lbs | 806101011378 |
| 84x12x12 | 7-1212SWP | 95 lbs | 806101011385 |
| 96x12x12 | 8-1212SWP | 109 lbs | 806101011392 |
| 119x12x12 | 10-1212SWP | 136 lbs | 806101011408 |
| 119x14x14 | 10-1414SWP | 152 lbs | |
| 18x16x16 | 1.6-66SWP | 10 lbs | |
| 36x16x16 | 3-1616SWP | 64 lbs | |
| 48x16x16 | 4-1616SWP | 83 lbs | |
| 60x16x16 | 5-1616SWP | 91 lbs | |
| 72x16x16 | 6-1616SWP | 75 lbs | |
| 96x16x16 | 8-1616SWP | 154.72 lbs | |
| 119x16x16 | 10-1616SWP | 173 lbs | |
| 36x18x18 | 3-1818SWP | 72 lbs | |
| 48x18x18 | 4-1818SWP | 93 lbs | |
| 60x18x18 | 5-1818SWP | 103 lbs | |
| 48x24x12 | 4-2412SWP | 93 lbs | |
| 72x24x12 | 6-2412SWP | 134 lbs | |
| 72x18x18 | 6-1818SWP | 85 lbs | |
| 96x18x18 | 8-1818SWP | 174.06 lbs | |
| 119x18x18 | 10-1818SWP | 195 lbs | |
| 36x20x20 | 3-2020SWP | 80 lbs | |
| 36x24x24 | 3-2424SWP | 96 lbs | |
| 48x24x24 | 4-2424SWP | 124 lbs | |
| 60x24x24 | 5-2424SWP | 137 lbs | |
| 72x24x24 | 6-2424SWP | 113 lbs | |
| 119x24x24 | 10-2424SWP | 260 lbs |
