Type 1, Wireway Fittings

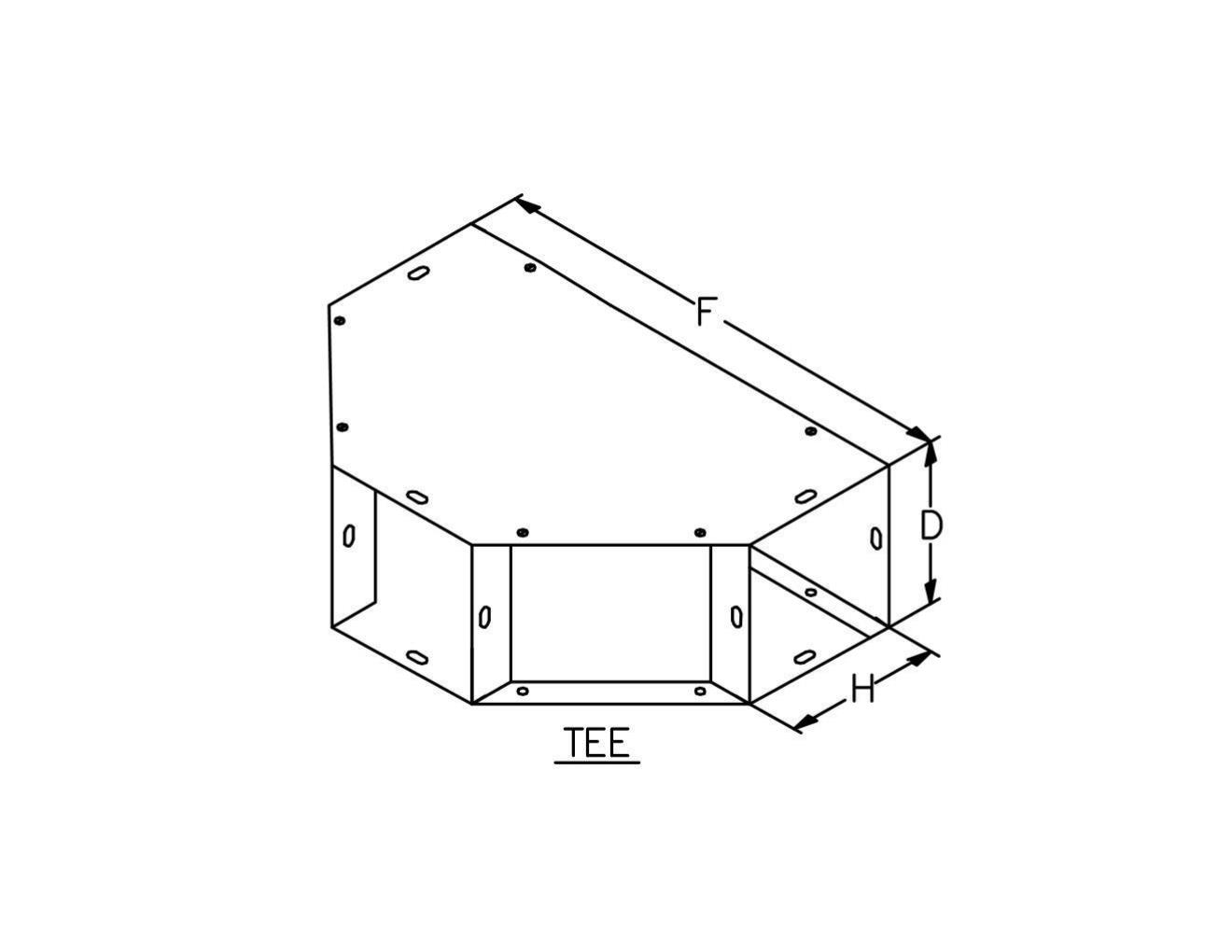

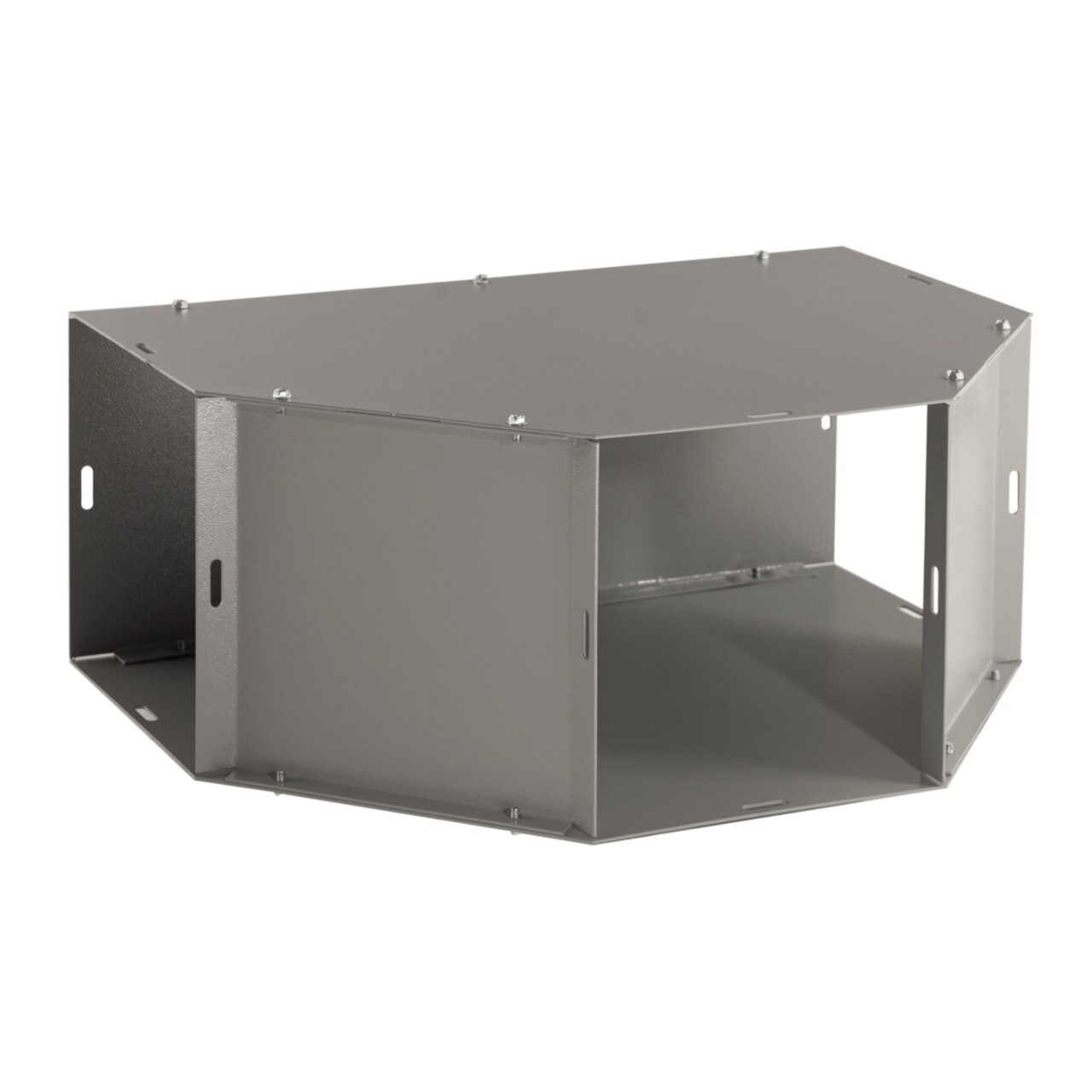

TYPE 1 PAINTED TEE FOR WIREWAY
Construction:- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- THIS FITTING CAN BE OPENED ON ANY SIDE TO PERMIT THE LAYING IN OF ENTIRE RUNS OF WIRING
- REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
Select your size
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-TP | 5 lbs | 806101019787 |
| 6x6 | 6-TP | 8 lbs | 806101019978 |
| 8x8 | 8-TP | 14 lbs | 806101020165 |
| 10x10 | 10-TP | 20 lbs | 806101024934 |
| 12x12 | 12-TP | 26 lbs | 806101025030 |
