Wireway Fittings, Type 1

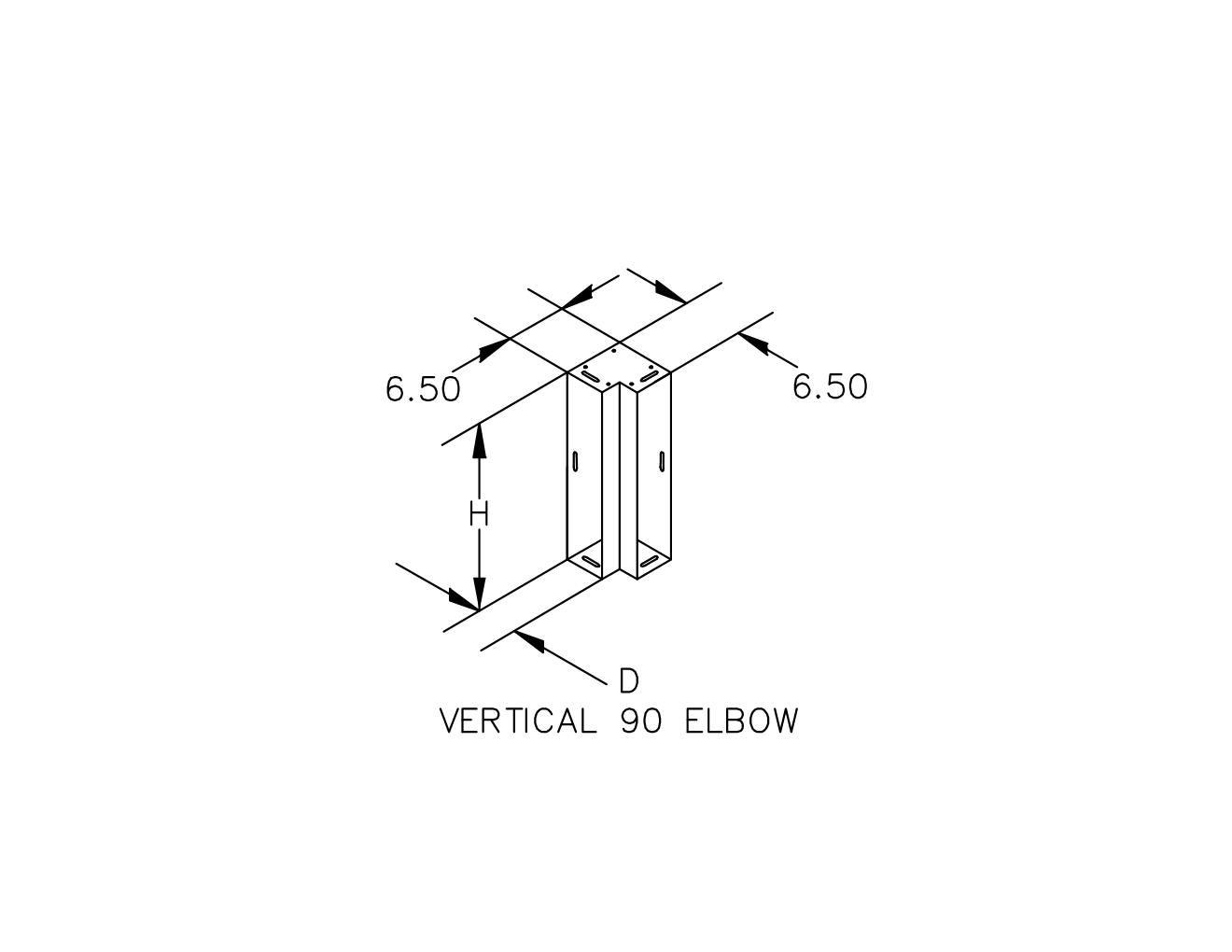

TYPE 1 PAINTED VERTICAL 90L FOR X-RAY DUCT
Construction:- THIS FITTING CAN BE OPENED ON ANY SIDE TO PERMIT THE LAYING IN OF ENTIRE RUNS OF WIRING
- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 8x3.50 | 8-V90L | 12 lbs | |
| 10x3.50 | 10-V90L | 7 lbs | 806101013167 |
| 18x3.50 | 18-V90L | 11 lbs | 806101013341 |
