Type 12, Wireway Fittings

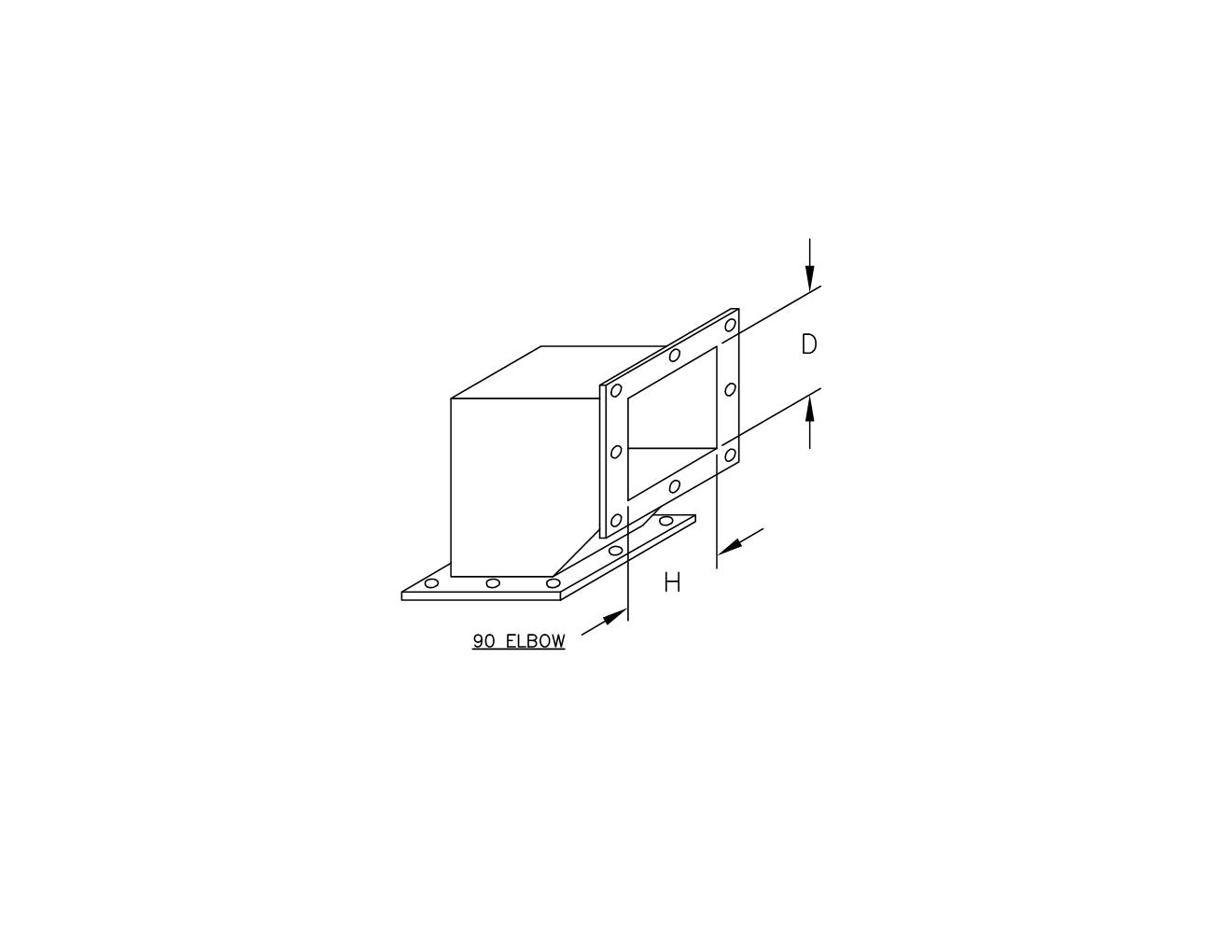

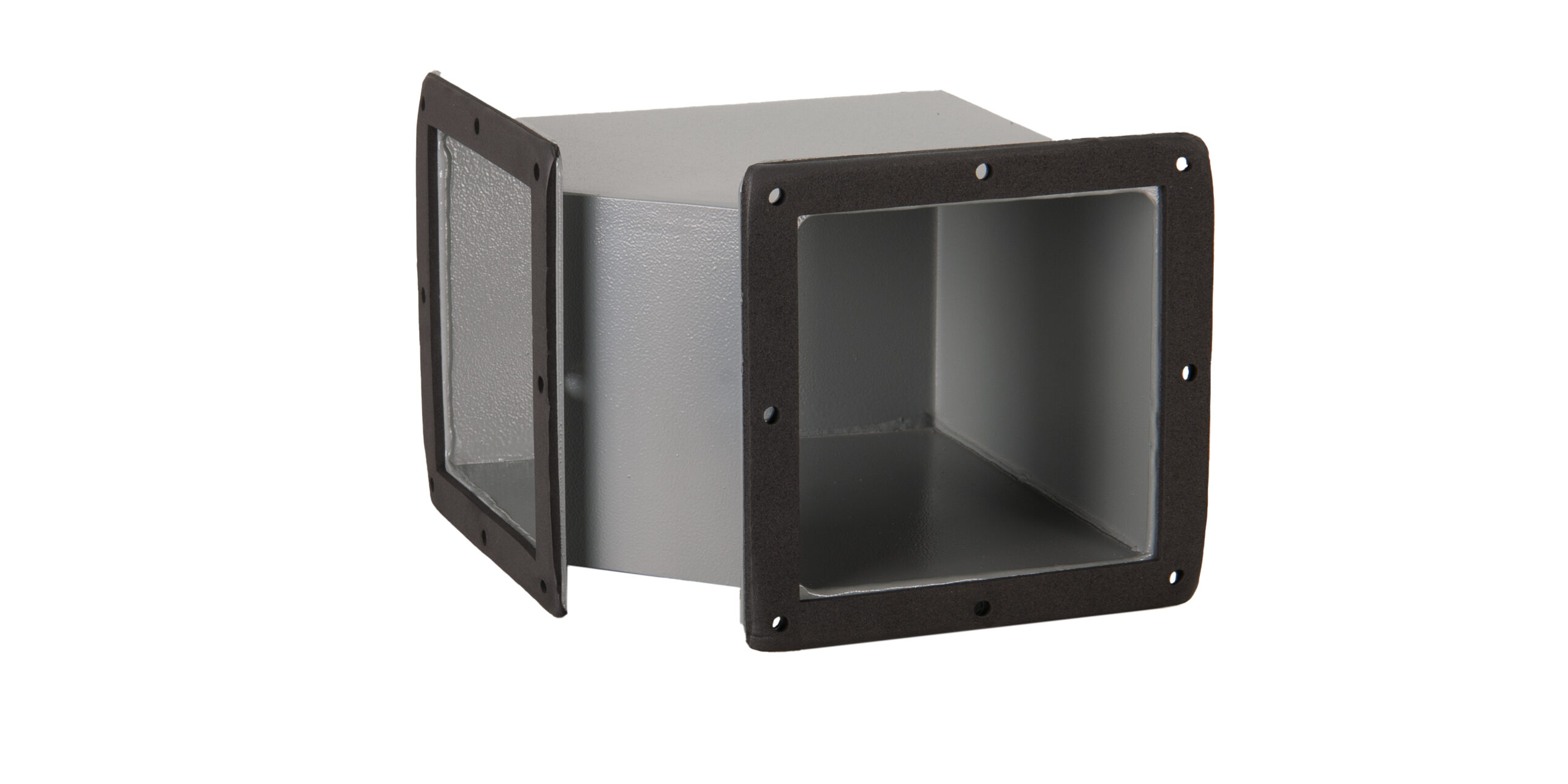

TYPE 12 PAINTED 90L FOR JIC PULL THRU WIREWAY
Construction:- GASKET POSITIONED BETWEEN FLANGES WHEN SECTIONS AND FITTINGS ARE BOLTED TOGETHER
- OIL RESISTANT GASKET
- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- 12 GAUGE STEEL END FLANGES
- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-90P | 5 lbs | 806101019756 |
| 6x6 | 6-90P | 8 lbs | 806101019947 |
| 8x8 | 8-90P | 12 lbs | 806101020134 |
| 12x12 | 12-90P | 24 lbs | |
| 24x24 | 24-90P | 48 lbs |
