Type 12, Wireway Fittings

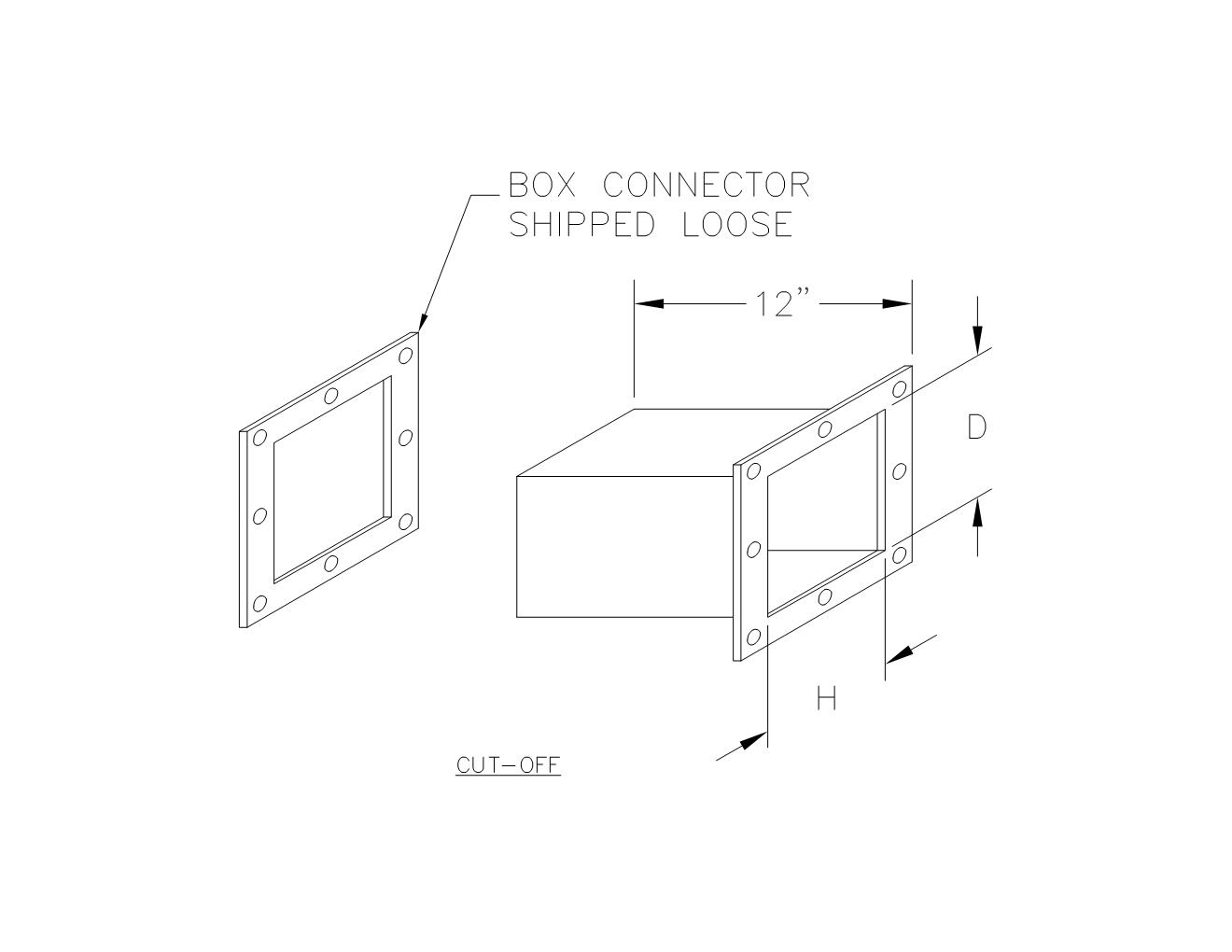

TYPE 12 PAINTED CUT-OFF FOR JIC PULL THRU WIREWAY
Construction:- OIL RESISTANT GASKET
- GASKET POSITIONED BETWEEN FLANGES WHEN SECTIONS AND FITTINGS ARE BOLTED TOGETHER
- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- 12 GAUGE STEEL END FLANGES
- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-CFP | 6 lbs | 806101019800 |
| 6x6 | 6-CFP | 8 lbs | 806101019992 |
| 8x8 | 8-CFP | 11 lbs | 806101020189 |
