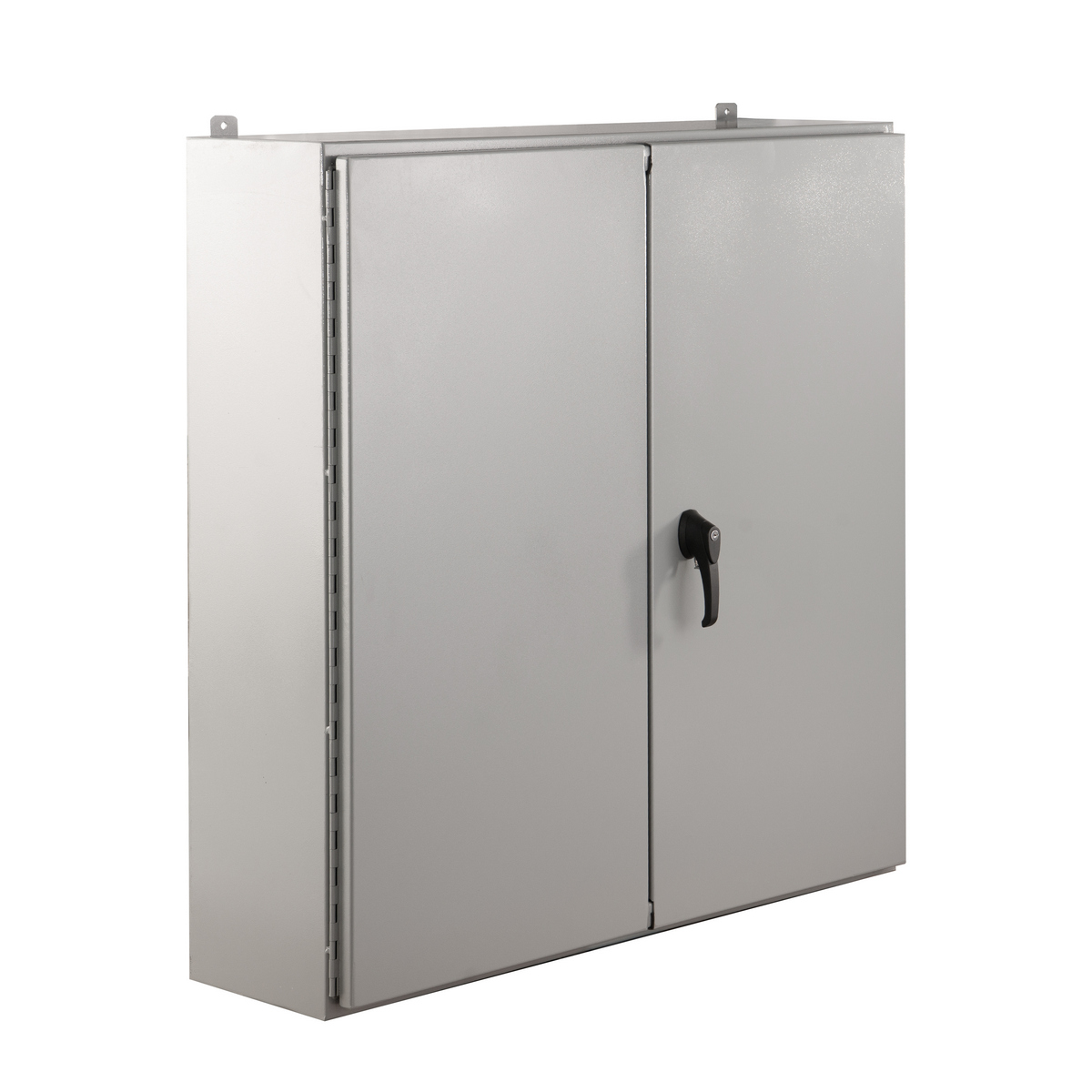

TYPE 12 PAINTED DOUBLE DOOR WALL MOUNT ENCLOSURE

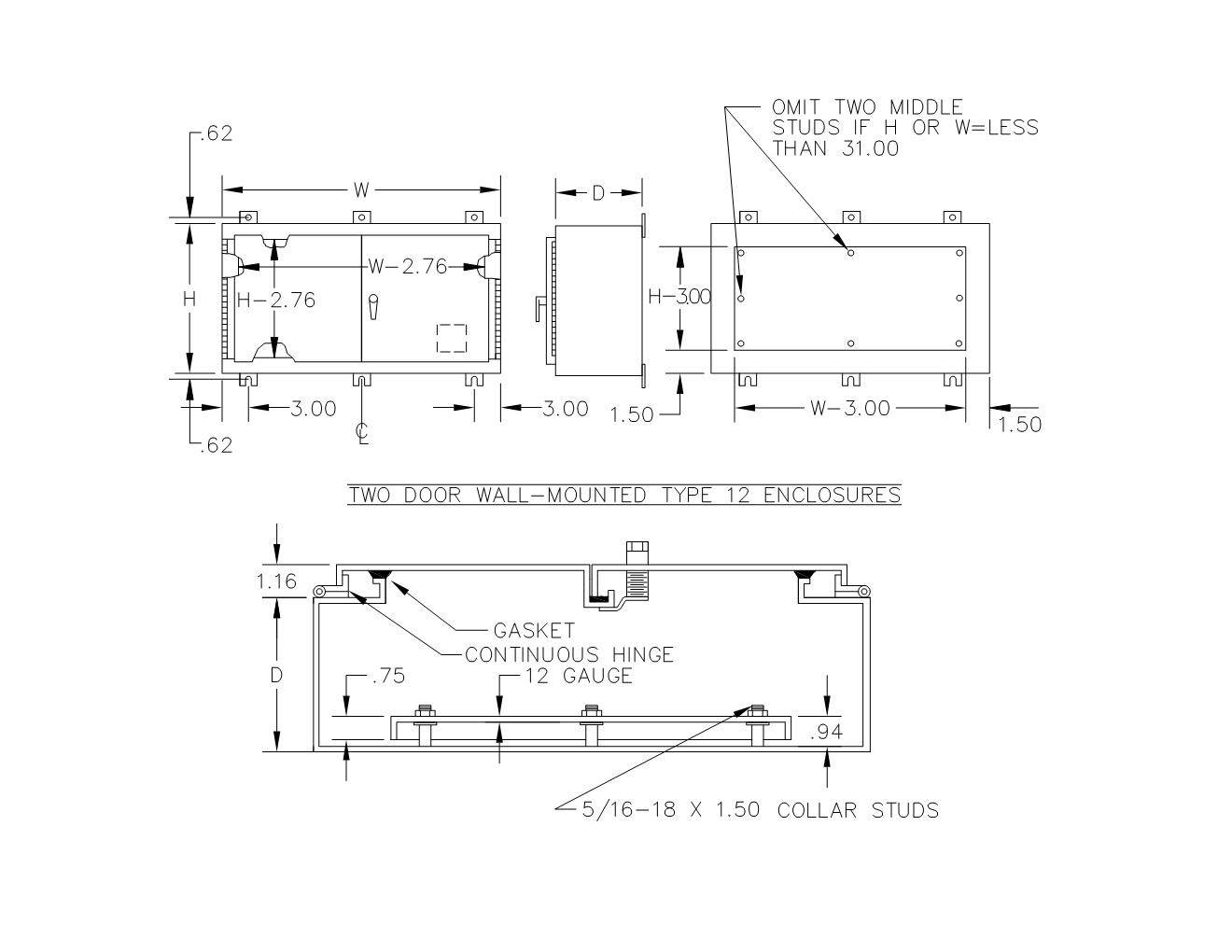

TYPE 12 PAINTED DOUBLE DOOR WALL MOUNT ENCLOSURE - Image 2

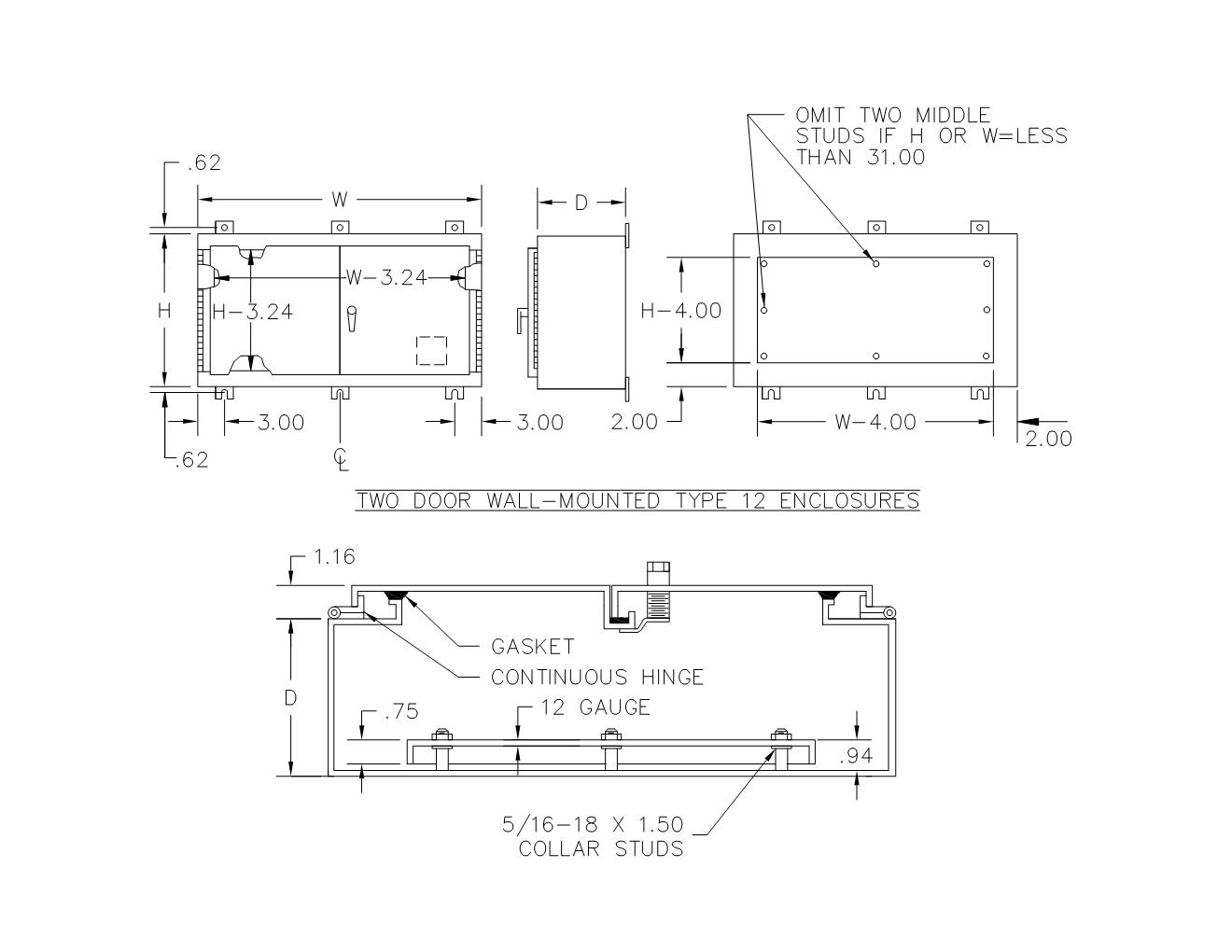

TYPE 12 PAINTED DOUBLE DOOR WALL MOUNT ENCLOSURE - Image 3
,

TYPE 12 PAINTED DOUBLE DOOR WALL MOUNT ENCLOSURE

Construction:
  • MOUNTING FEET
  • THREE POINT LATCHING MECHANISM OPERATED BY OIL TIGHT KEYLOCKING L-HANDLE
  • GASKETED OVERLAPPING DOORS ELIMINATE THE NEED FOR CENTERPOST
  • PRINT POCKET
  • LATCH RODS HAVE ROLLERS FOR EASIER DOOR CLOSING
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • HEAVY GAUGE CONTINUOUS HINGE
  • STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
  • OIL RESISTANT GASKET
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

DOWNLOAD SPEC SHEET 41X41 AND SMALLER

DOWNLOAD SPEC SHEET 42X42 AND LARGER

SKU: DWN12 Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
24x42x8DW24428N1279 lbs806101017707
24x48x8DW24488N1288 lbs806101017714
30x42x10DW304210N12100 lbs806101017721
30x48x10DW304810N12111 lbs806101017738
30x60x10DW306010N12135 lbs806101017745
36x36x12DW363612N12149 lbs
36x42x12DW364212N12122 lbs806101017752
36x48x12DW364812N12136 lbs806101017769
48x48x12DW484812N12232 lbs806101017790
36x60x12DW366012N12163 lbs806101017776
42x60x12DW426012N12253 lbs806101017783
60x48x12DW604812N12281 lbs
48x48x16DW484816N12258 lbs
48x48x18DW484818N12270 lbs
48x48x24DW484824N12306 lbs
