Wireway Fittings, Type 12

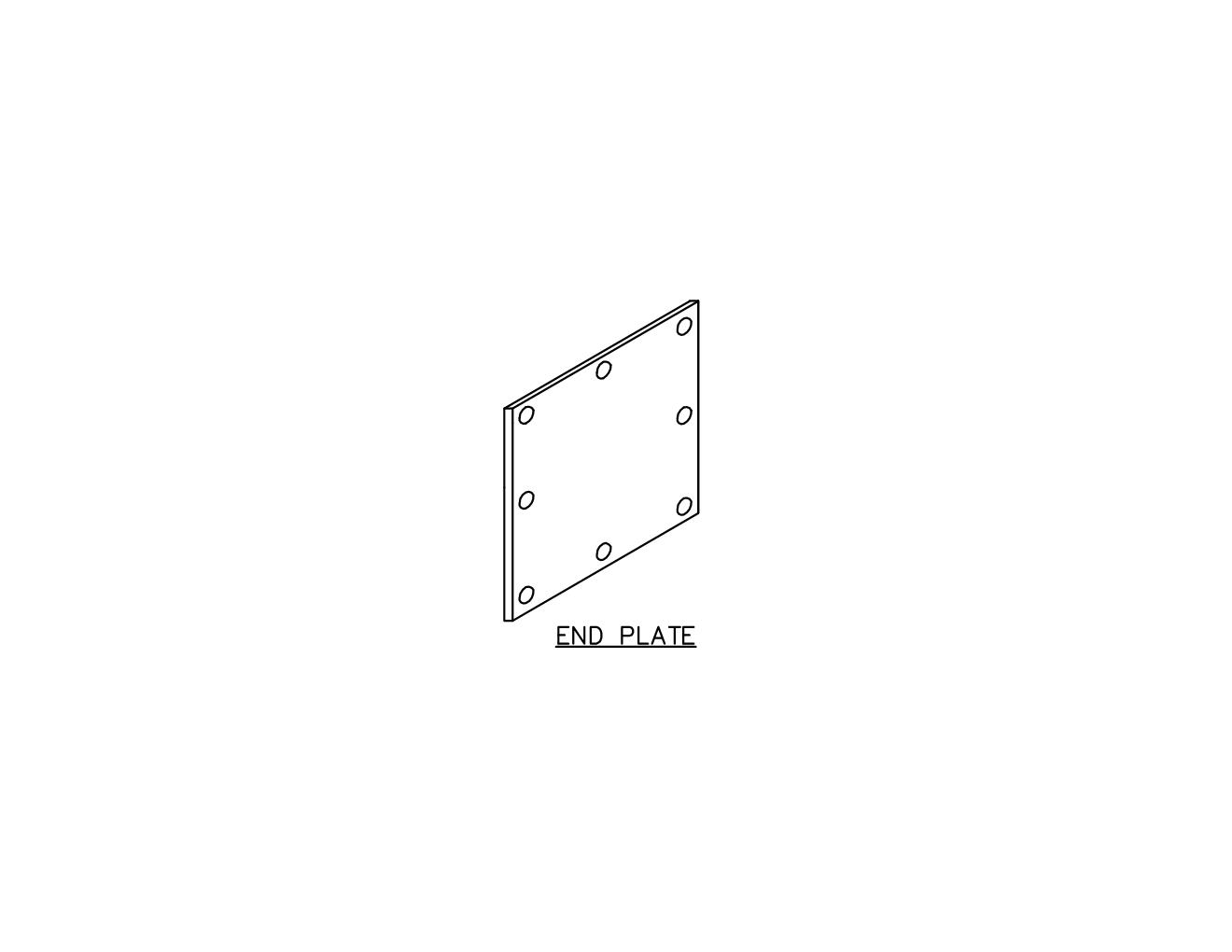

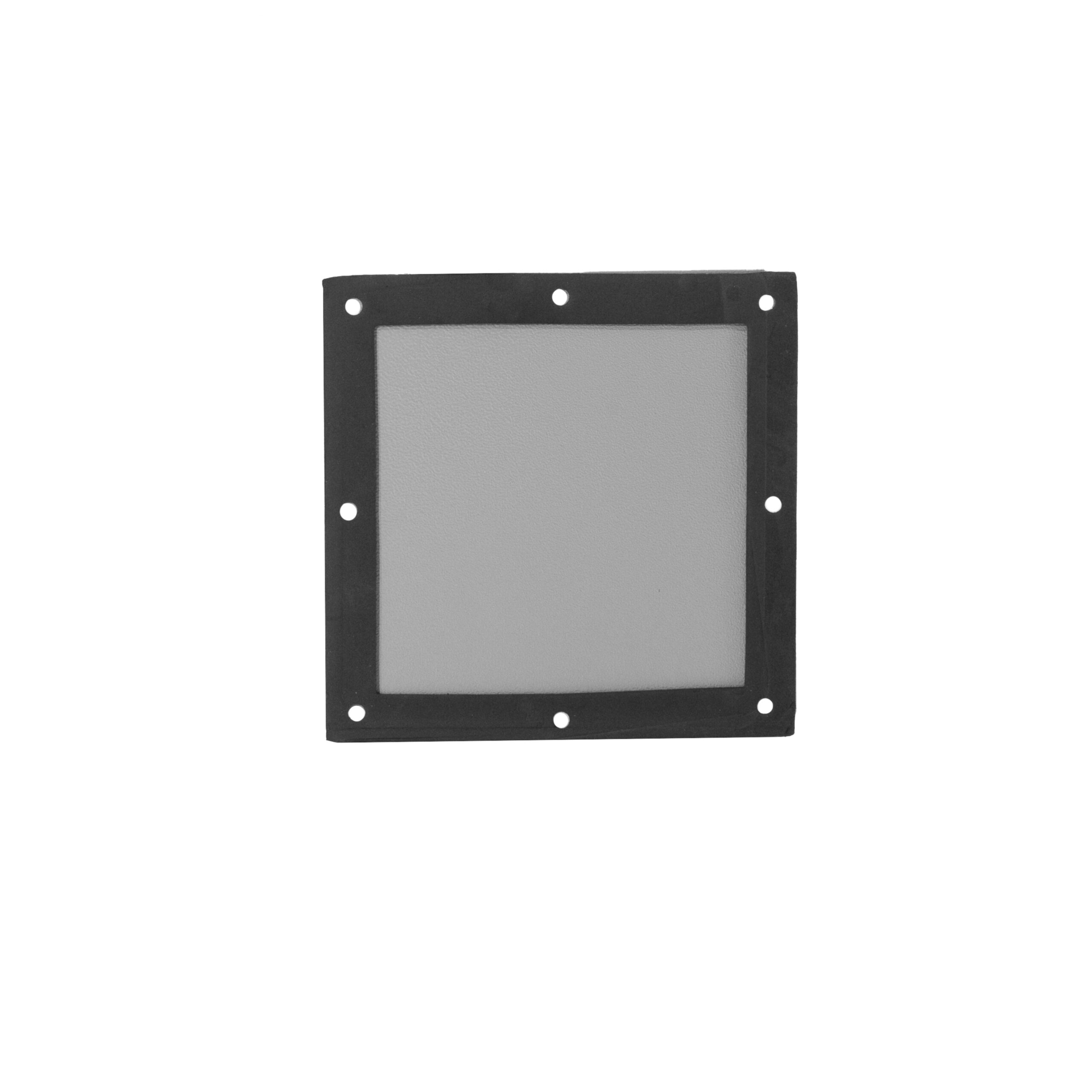

TYPE 12 PAINTED END PLATE FOR JIC PULL THRU WIREWAY
Construction:- 12 GAUGE PAINT GRIP GALVANIZED STEEL
- GASKET POSITIONED BETWEEN FLANGES WHEN SECTIONS AND FITTINGS ARE BOLTED TOGETHER
- OIL RESISTANT GASKET
- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-EPP | 2 lbs | 806101019794 |
| 6x6 | 6-EPP | 1 lbs | 806101019985 |
| 8x8 | 8-EPP | 3 lbs | 806101020172 |
| 10x10 | 10-EPP | 4 lbs | |
| 12x12 | 12-EPP | 7 lbs |
