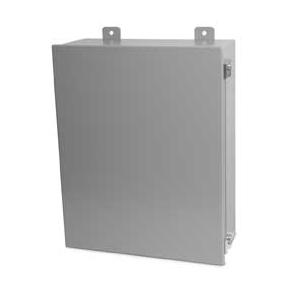

TYPE 12 PAINTED JIC CONTINUOUS HINGE ENCLOSURE LARGE
TYPE 12 PAINTED JIC CONTINUOUS HINGE ENCLOSURE LARGE - Image 2

TYPE 12 PAINTED JIC CONTINUOUS HINGE ENCLOSURE LARGE

Construction:
  • EXTERNAL MOUNTING TABS FOR EASY INSTALLATION
  • STUDS PROVIDED FOR MOUNTING OPTIONAL BACK PANEL
  • SCREW CLAMPS ARE QUICK AND EASY TO OPERATE
  • CONTINUOUS HINGE
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • OIL RESISTANT GASKET
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

SKU: JHN12 Category:

For large quantities or custom sizes call factory

Downloads

Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
20x16x7JH20167N1230 lbs806101016724
20x20x7JH20207N1235 lbs806101016731
24x20x7JH24207N1240 lbs806101016748
30x20x7JH30207N1248 lbs806101016762
30x24x7JH30247N1255 lbs806101016779
36x24x7JH36247N1264 lbs806101016786
20x16x9JH20169N1233 lbs806101016793
20x20x9JH20209N1239 lbs806101016809
24x20x9JH24209N1244 lbs806101016816
24x24x9JH24249N1251 lbs806101016823
30x20x9JH30209N1253 lbs806101016830
36x24x9JH36249N1270 lbs806101016854
36x30x9JH36309N1282 lbs806101016861
42x30x9JH42309N1293 lbs806101016878
42x36x9JH42369N12108 lbs806101016885
24x24x11JH242411N1255 lbs806101016892
36x24x11JH362411N1275 lbs806101016908
30x24x13JH302413N1270 lbs806101016922
36x30x13JH363013N1294 lbs806101016939
