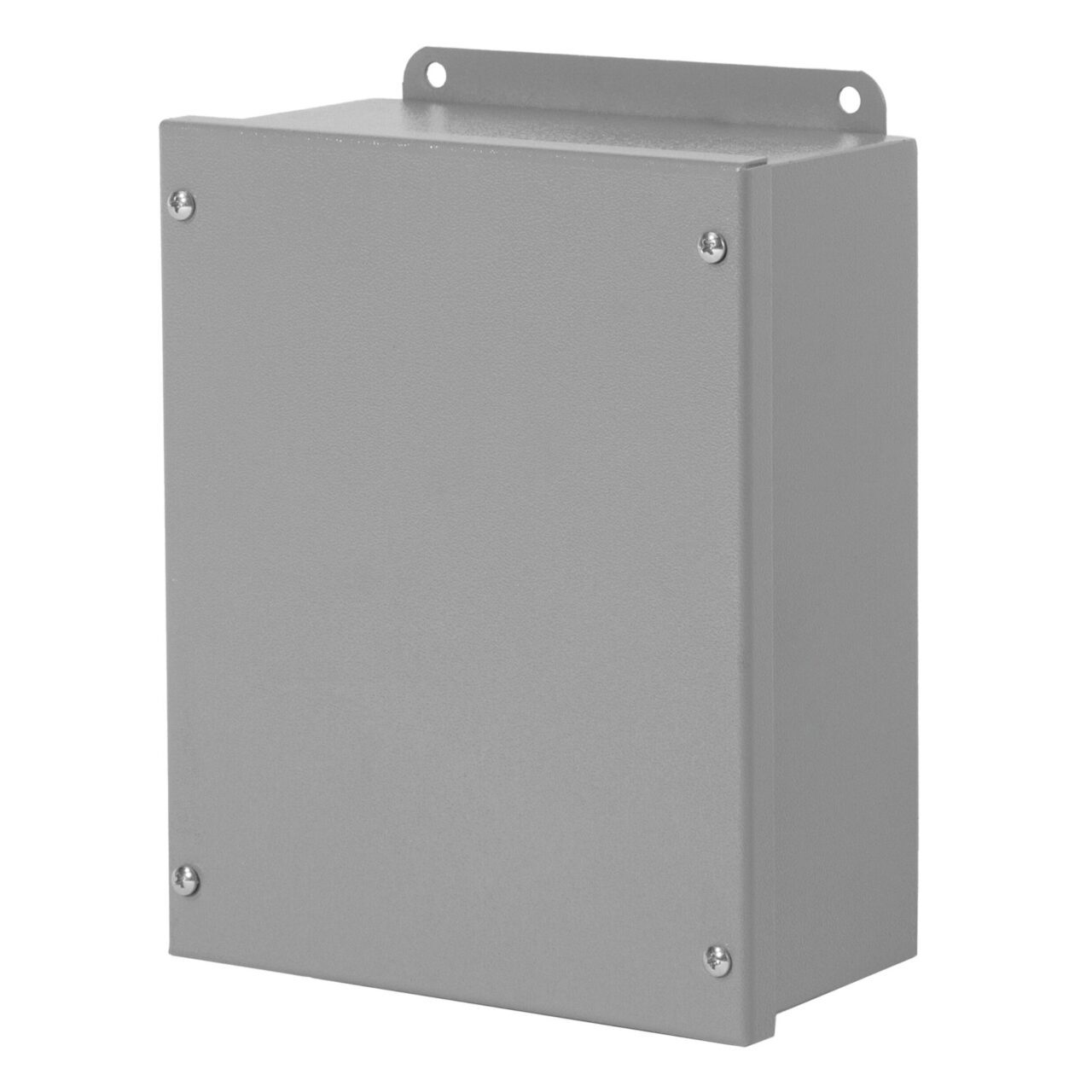

TYPE 12 PAINTED JIC SCREW COVER ENCLOSURE W/ PANEL
TYPE 12 PAINTED JIC SCREW COVER ENCLOSURE W/ PANEL - Image 2
,

TYPE 12 PAINTED JIC SCREW COVER ENCLOSURE W/ PANEL

Construction:
  • STEEL, PAINTED WHITE BACK PANEL INSTALLED/INCLUDED
  • REMOVEABLE COVERS ARE FASTENED WITH PLATED STEEL SCREWS
  • EXTERNAL MOUNTING TABS FOR EASY INSTALLATION
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • OIL RESISTANT GASKET
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

DOWNLOAD SPEC SHEET

SKU: JSCN12 Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
4x4x3JSC443N123 lbs806101016274
6x4x3JSC643N124 lbs806101016298
4x4x4JSC444N123 lbs806101016281
6x4x4JSC644N124 lbs806101016304
6x6x4JSC664N125 lbs806101016311
8x6x4JSC864N126 lbs806101016328
8x8x4JSC884N128 lbs806101016342
10x8x4JSC1084N129 lbs806101016359
10x10x4JSC10104N1210 lbs806101016373
12x10x5JSC12105N1213 lbs806101016397
8x6x6JSC866N128 lbs806101016335
10x8x6JSC1086N1211 lbs806101016366
10x10x6JSC10106N1212 lbs806101016380
12x12x6JSC12126N1216 lbs806101016403
14x12x6JSC14126N1218 lbs806101016410
16x14x6JSC16146N1221 lbs806101016427
