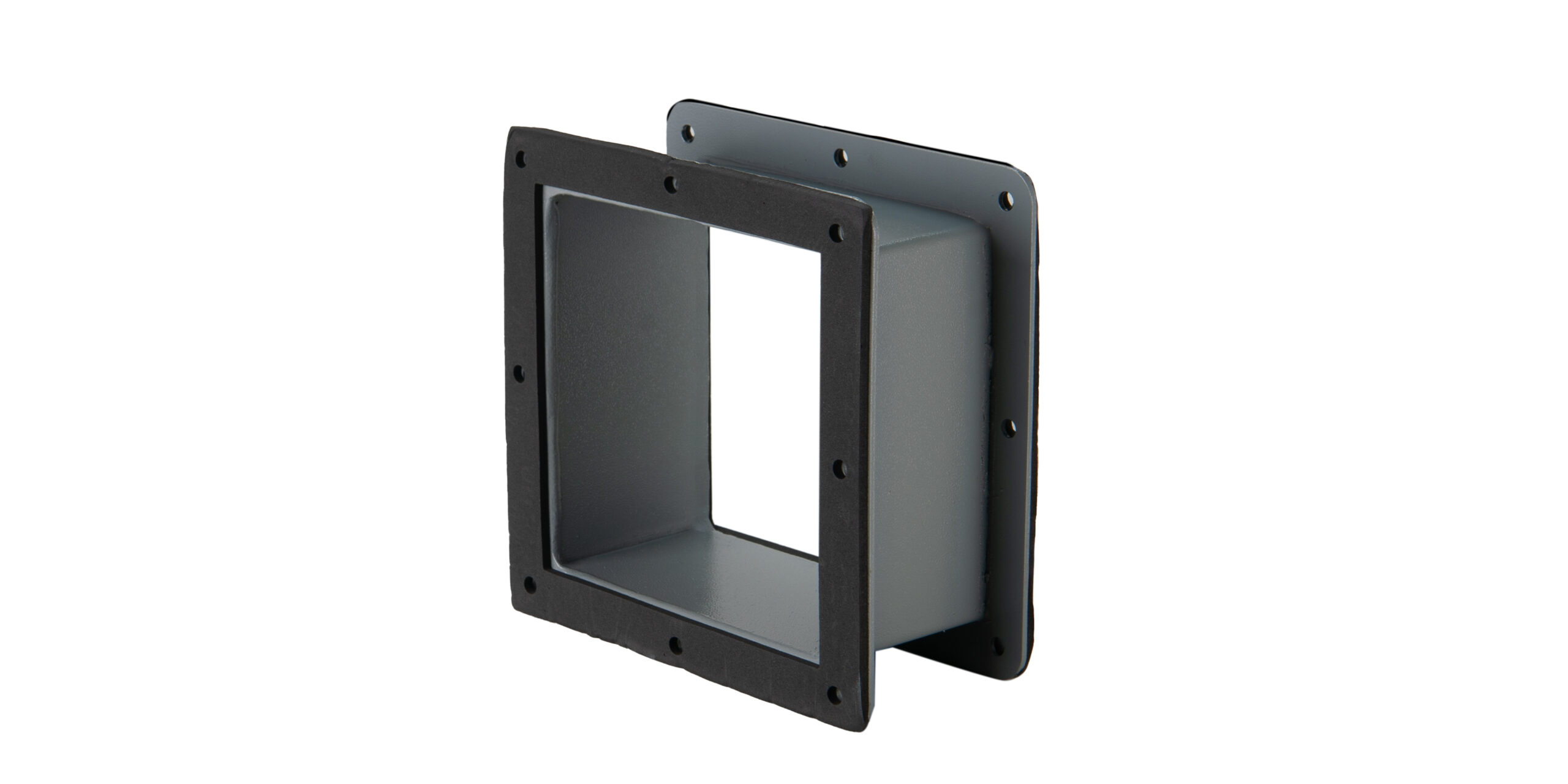

TYPE 12 PAINTED NIPPLE FOR JIC PULL THRU WIREWAY

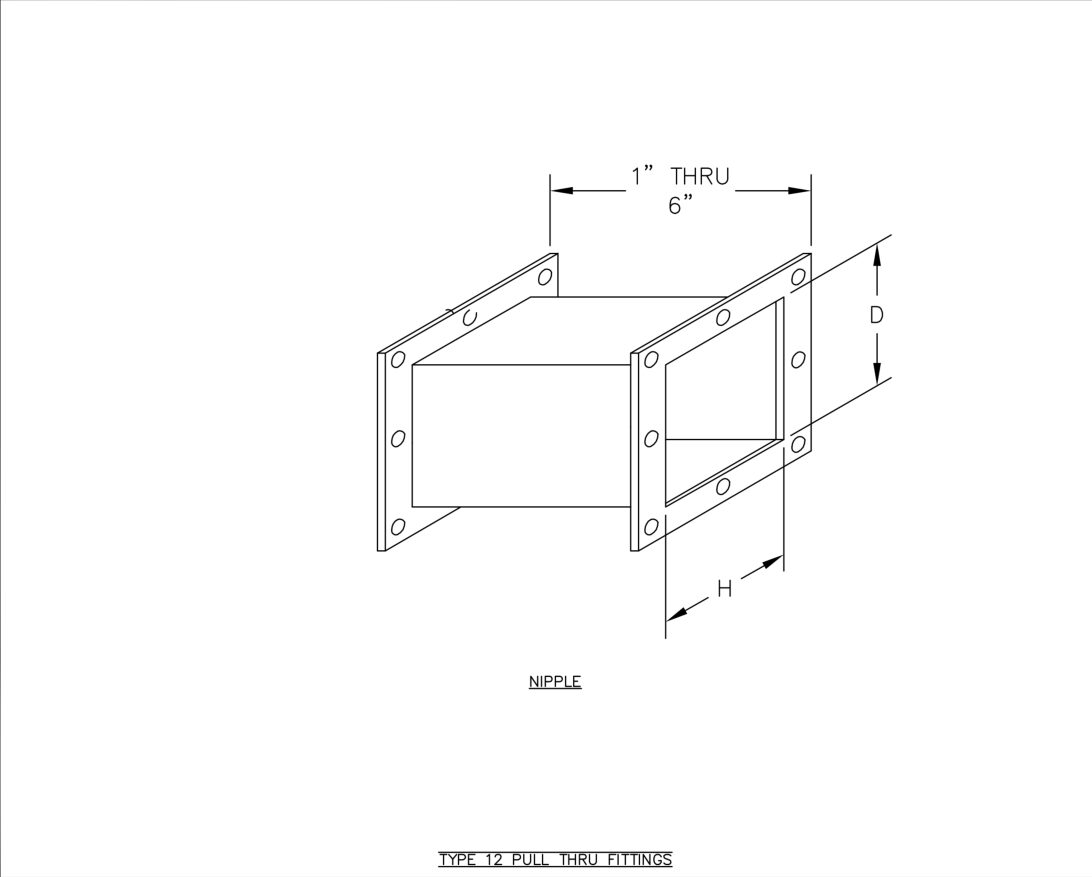

TYPE 12 PAINTED NIPPLE FOR JIC PULL THRU WIREWAY - Image 2
,

TYPE 12 PAINTED NIPPLE FOR JIC PULL THRU WIREWAY

Construction:
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • 12 GAUGE STEEL END FLANGES
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • OIL RESISTANT GASKET
  • GASKET POSITIONED BETWEEN FLANGES WHEN SECTIONS AND FITTINGS ARE BOLTED TOGETHER
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

DOWNLOAD SPEC SHEET

Select your size
SKU: NP Categories: ,

For large quantities or custom sizes call factory
Wireway Size LxHxDCatalog NumberWeightUPC_12Digit
12x4x44-N1P2 lbs806101019817
24x4x44-N2P2 lbs806101019824
36x4x44-N3P3 lbs806101019831
12x6x66-N1P4 lbs806101020004
24x6x66-N2P4 lbs806101020011
36x6x66-N3P3 lbs806101020028
12x8x88-N1P4 lbs806101020196
24x8x88-N2P4 lbs806101020202
36x8x88-N3P4 lbs806101020219
