Wireway Fittings, Type 12

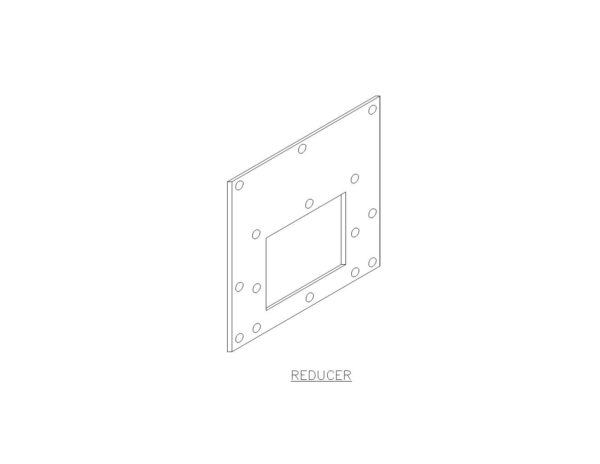

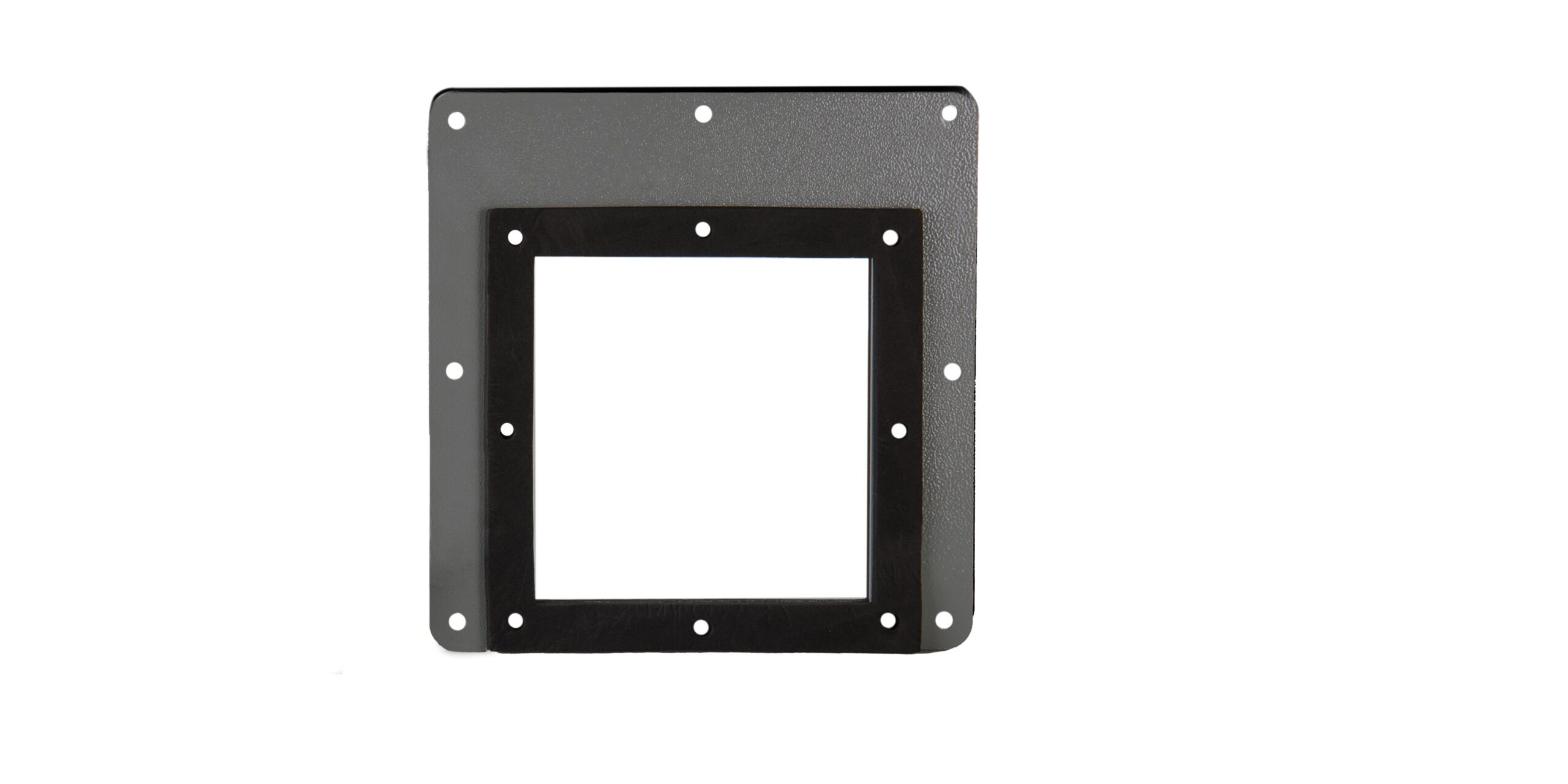

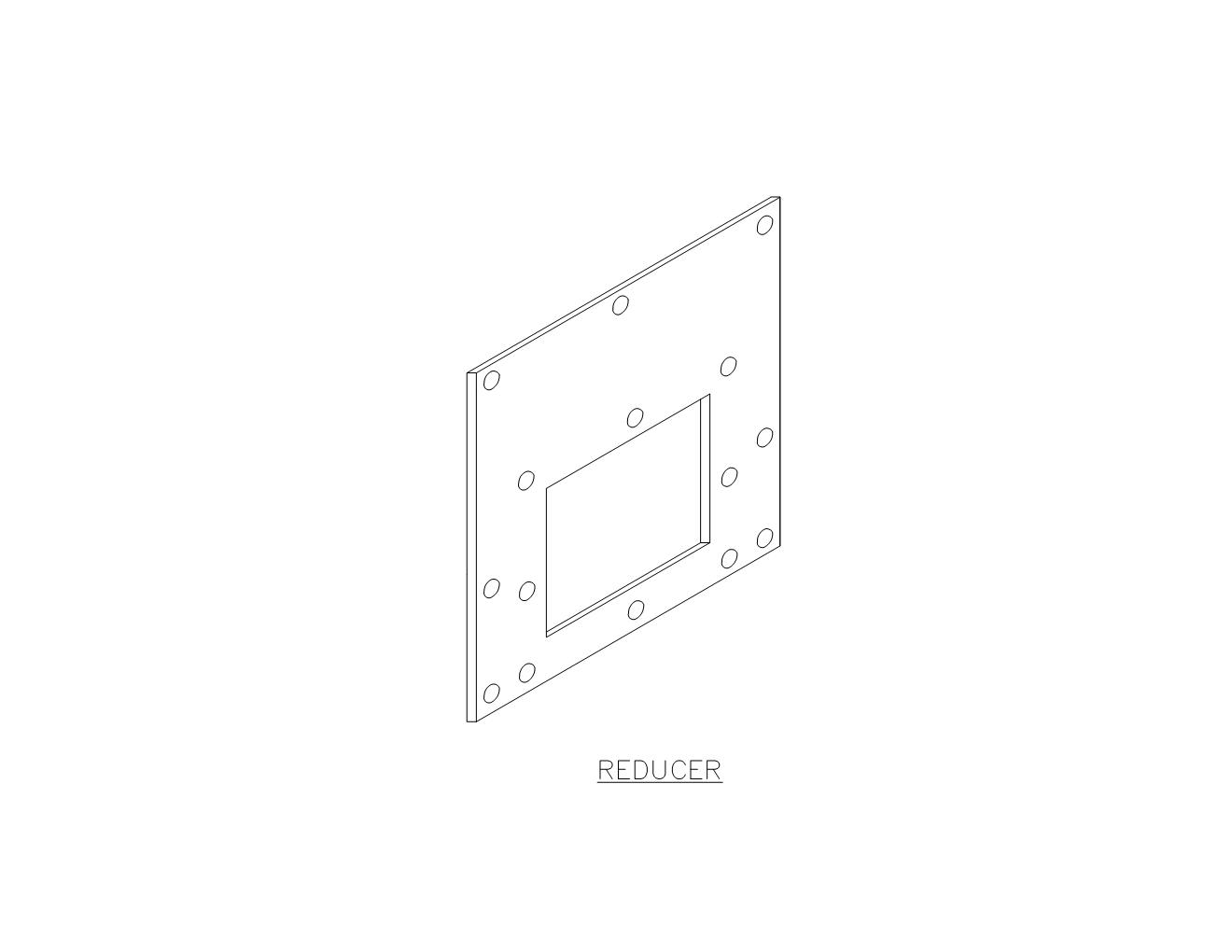

TYPE 12 PAINTED REDUCER FOR JIC PULL THRU WIREWAY
Construction:- CODE GAUGE G-60 or G-90 GALVANIZED STEEL
- NECESSARY FOR TRANSITIONING FROM LARGER TO SMALLER SIZE WIREWAY
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-RPN12 | 1 lbs | 806101030089 |
| 6x6 | 6-RPN12 | 2 lbs | 806101030096 |
| 8x8 | 8-RPN12 | 3 lbs | 806101030102 |
