Type 12, Products

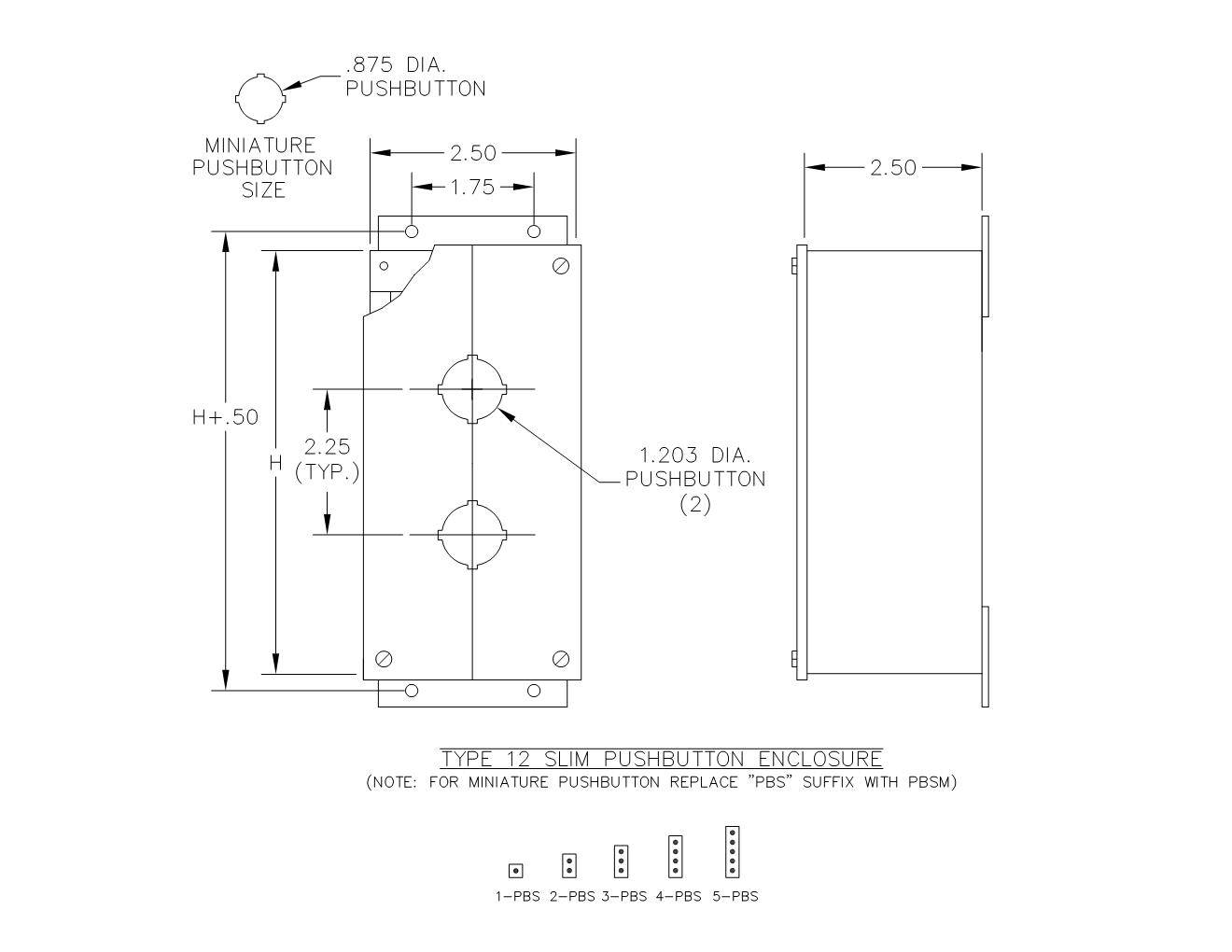

TYPE 12 PAINTED SLIM MINIATURE PUSH BUTTON ENCLOSURE
Construction:- 22.50MM PUSH BUTTON
- OIL RESISTANT GASKET
- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x2.50x2.50 | 1PBSM | 2 lbs | 806101028178 |
| 8.25x2.50x2.50 | 3PBSM | 4 lbs | 806101028277 |
| 10.25x2.50x2.50 | 4-PBSM | 4 lbs | 806101028321 |
| 13x2.50x2.50 | 5-PBSM | 5 lbs | 806101028345 |
| 5.75x3.25x2.75 | 2PBSM | 3 lbs | 806101028222 |
