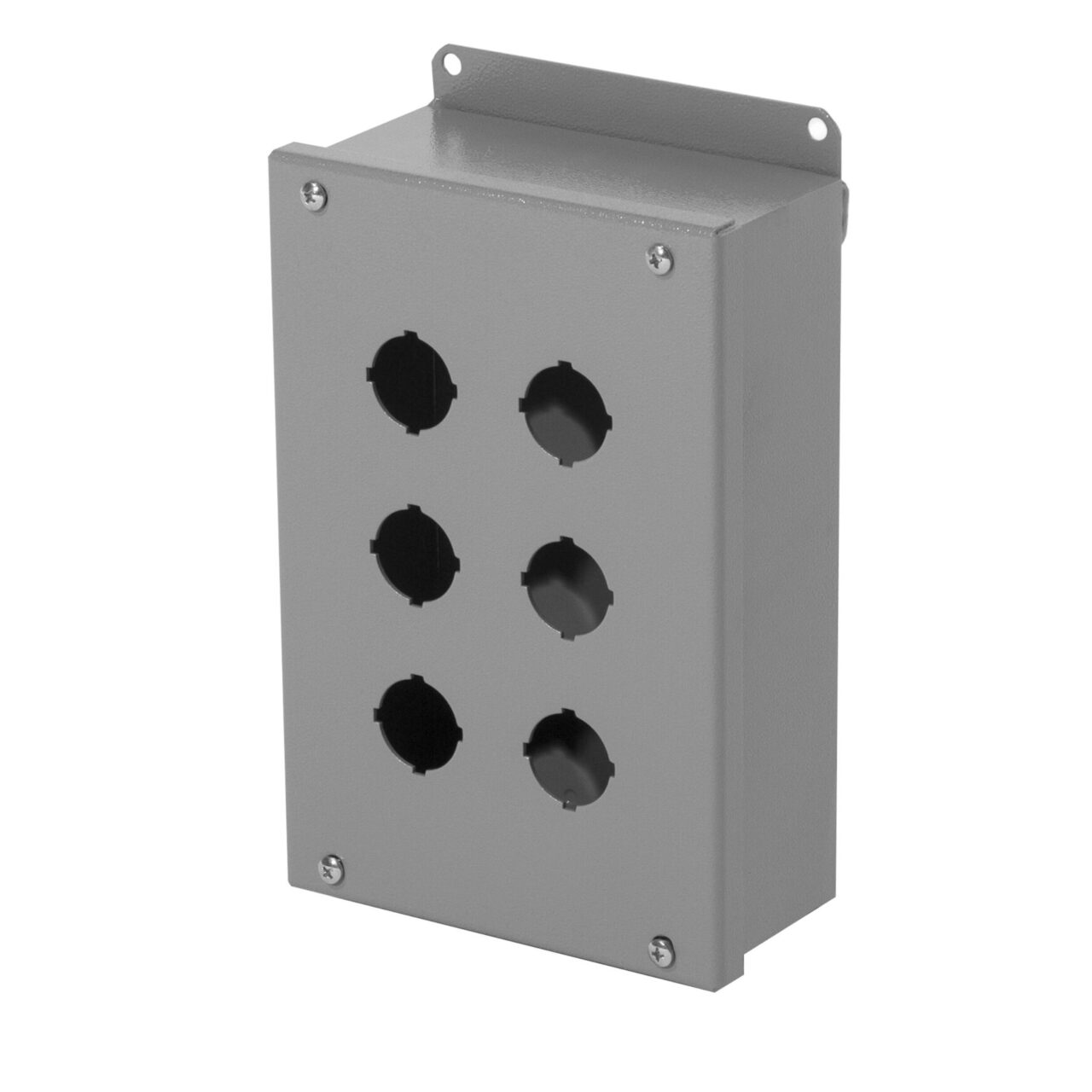

TYPE 12 PAINTED STANDARD PUSH BUTTON ENCLOSURE
Construction:- 30.50MM OR 20MM PUSH BUTTON
- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- OIL RESISTANT GASKET
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory

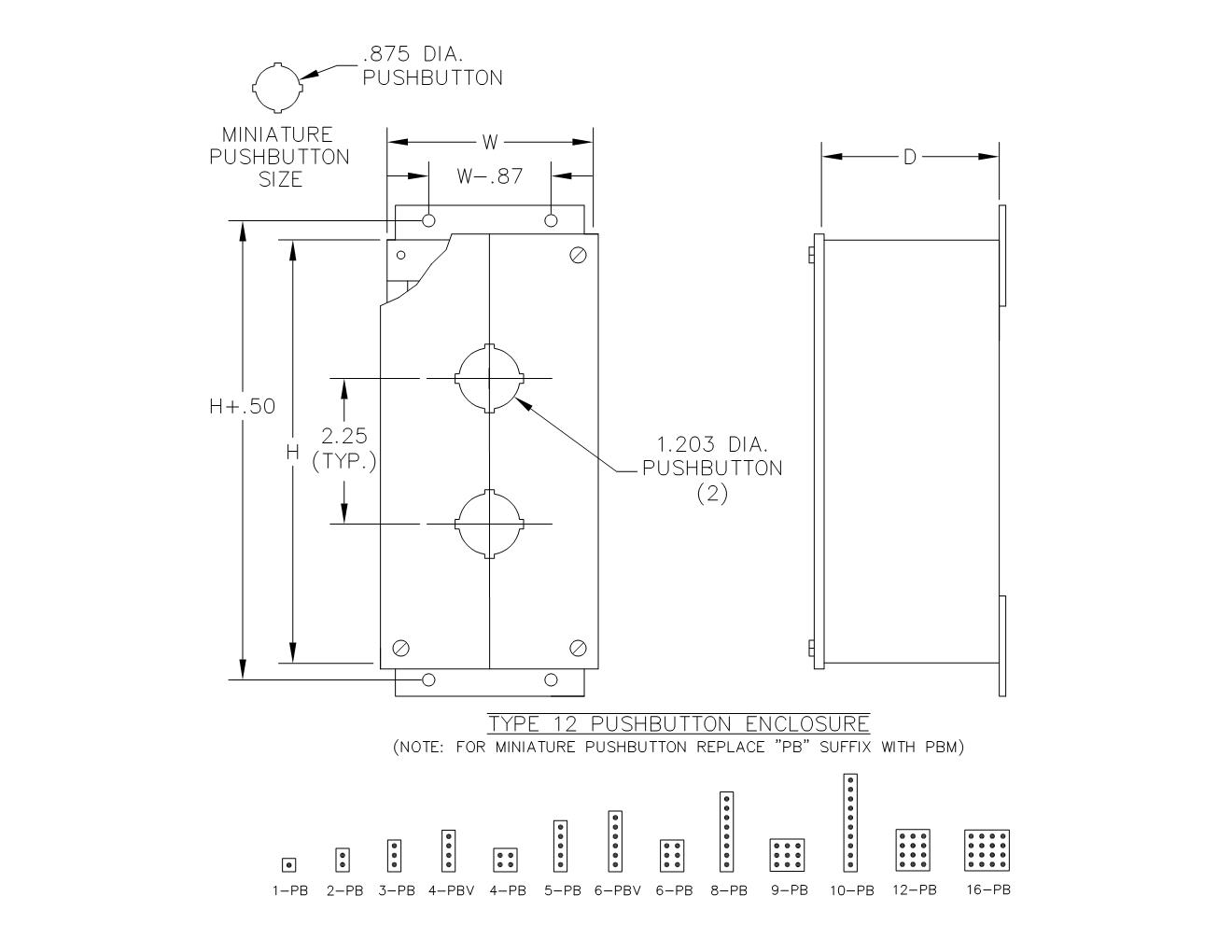

| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 3.50x3.25x2.75 | 1-PB | 2 lbs | |
| 5.75x3.25x2.75 | 2PB | 3 lbs | 806101021018 |
| 5.75x3.25x2.75 | 2-PB | 3 lbs | |
| 8x2.25x2.75 | 3PB | 4 lbs | 806101021025 |
| 8x2.25x2.75 | 3-PB | 4 lbs | |
| 10.25x3.25x2.75 | 4-PBV | 4 lbs | 806101021032 |
| 12.50x3.25x2.75 | 5-PB | 6 lbs | 806101021056 |
| 14.75x3.25x2.75 | 6-PBV | 6.17 lbs | 806101021070 |
| 20.25x3.25x2.75 | 8-PB | 8 lbs | 806101021087 |
| 24.75x3.25x2.75 | 10-PB | 9 lbs | 806101021100 |
| 7.25x6.25x3 | 4-PB | 6 lbs | 806101021049 |
| 9.50x6.25x3.00 | 6-PB | 6 lbs | 806101021063 |
| 9.50x8.50x3 | 9-PB | 8 lbs | 806101021094 |
| 11.75x8.50x3.00 | 12-PB | 8 lbs | 806101021117 |
| 11.75x10.75x3.00 | 16-PB | 10 lbs | 806101021124 |
