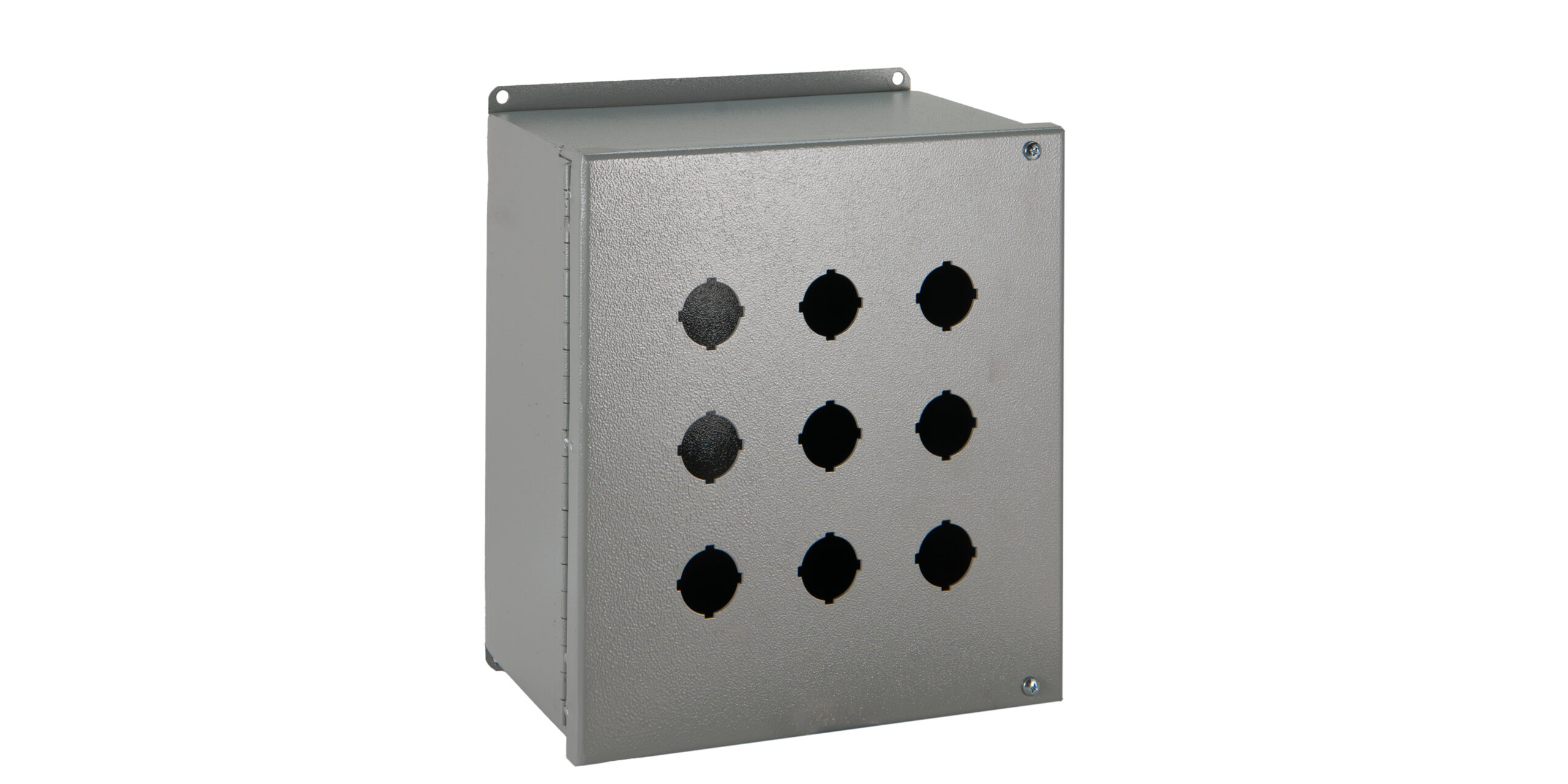

TYPE 12 PAINTED XL PUSH BUTTON ENCLOSURE W/HINGED COVER & PANEL

Construction:
  • 30.50MM OR 22.50MM PUSH BUTTON
  • OIL RESISTANT GASKET
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

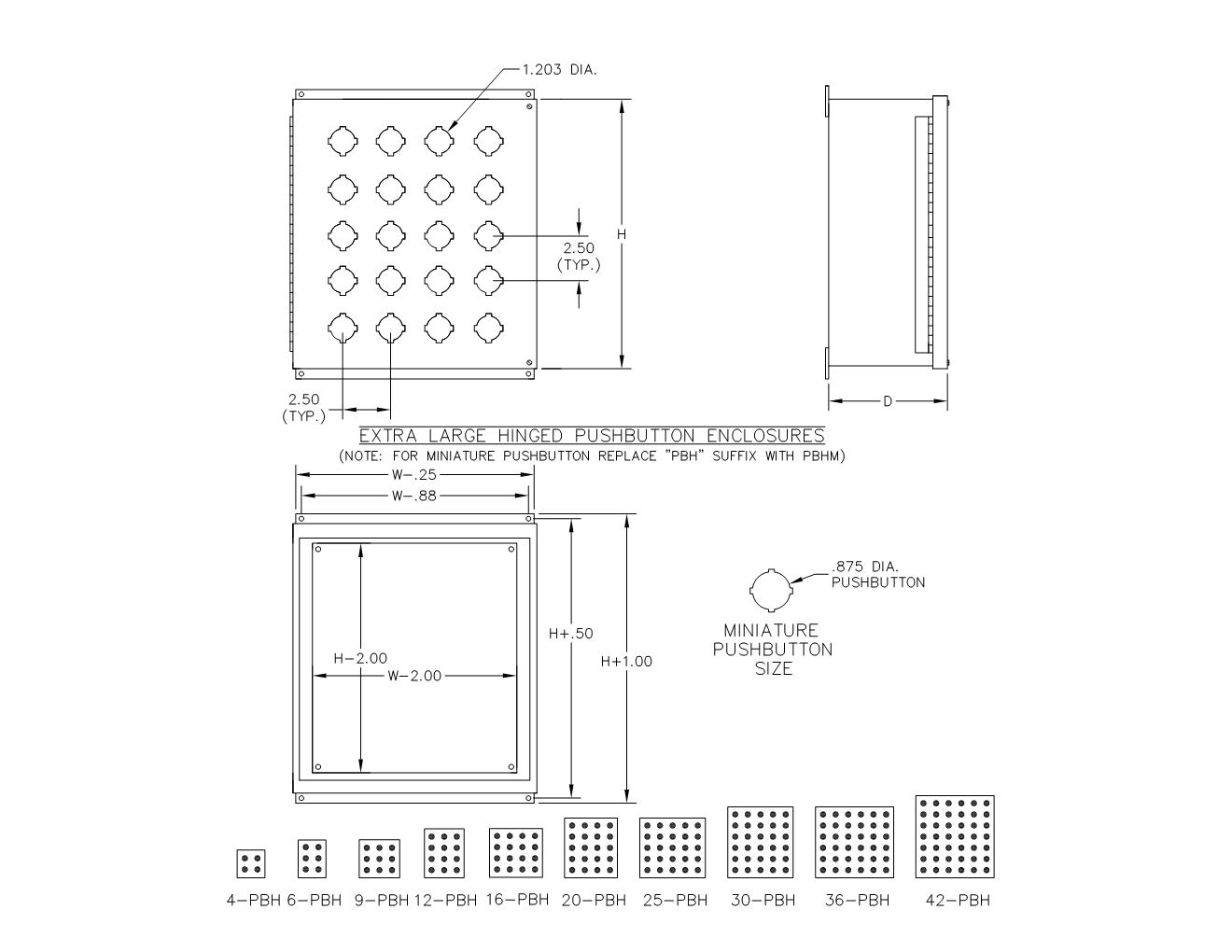

DOWNLOAD SPEC SHEET

SKU: PBH Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
11x10x69-PBH14 lbs806101021209
8.50x7.50x64-PBH8 lbs806101021186
11x7.50x66-PBH12 lbs806101021193
13.50x10x612-PBH14 lbs806101021216
13.50x12.50x616-PBH16 lbs806101021223
16x12.50x620-PBH35 lbs806101021230
18.50x15x630-PBH29 lbs806101021254
18.50x17.50x636-PBH31 lbs806101021261
21x17.50x642-PBH38 lbs806101021278
16x15x625-PBH24 lbs806101021247
