Type 3R, Products

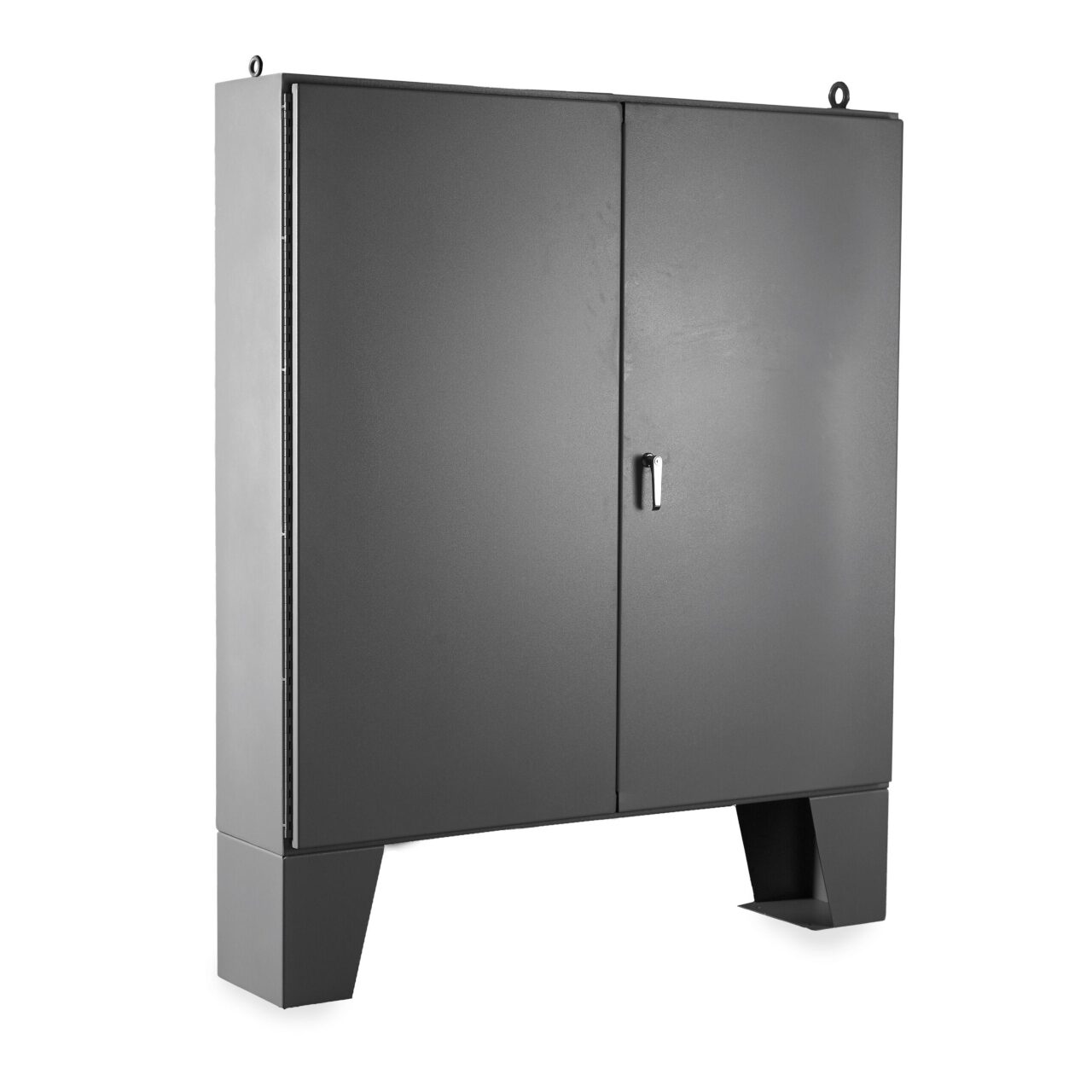

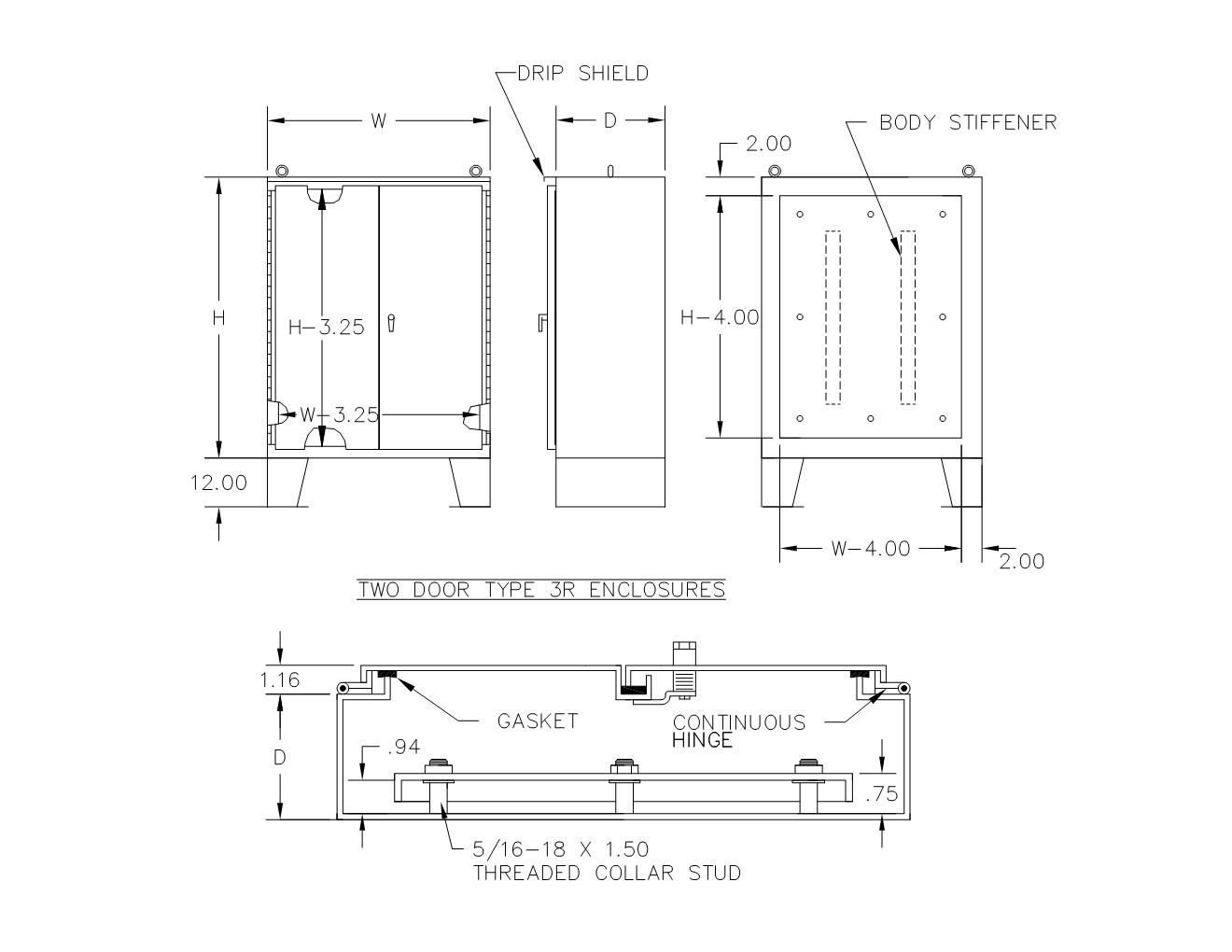

TYPE 3R PAINTED DOUBLE DOOR FLOOR MOUNT ENCLOSURE
Construction:- HEAVY DUTY LIFTING EYES
- 12 INCH FLOOR STANDS ARE WELDED TO ENCLOSURE
- GASKETED OVERLAPPING DOORS ELIMINATE THE NEED FOR CENTERPOST
- PRINT POCKET
- HEAVY GAUGE CONTINUOUS HINGE
- LATCH RODS HAVE ROLLERS FOR EASIER DOOR CLOSING
- 3 POINT LATCHING MECHANISM OPERATED BY OIL TIGHT KEYLOCKING/PADLOCKING L-HANDLE
- 12 GAUGE PAINT GRIP GALVANNEAL STEEL CODE GAUGE PAINT GRIP GALVANIZED STEEL
- STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
- OIL RESISTANT GASKET
- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Outdoor use to provide a degree of protection against falling rain; undamaged by the formation of ice on the enclosure.
For large quantities or custom sizes call factory
| Catalog Number | Weight | UPC_12Digit |
|---|---|---|
| D604812RE | 281 lbs | |
| D606012RE | 337 lbs | |
| D606018RE | 382 lbs |
