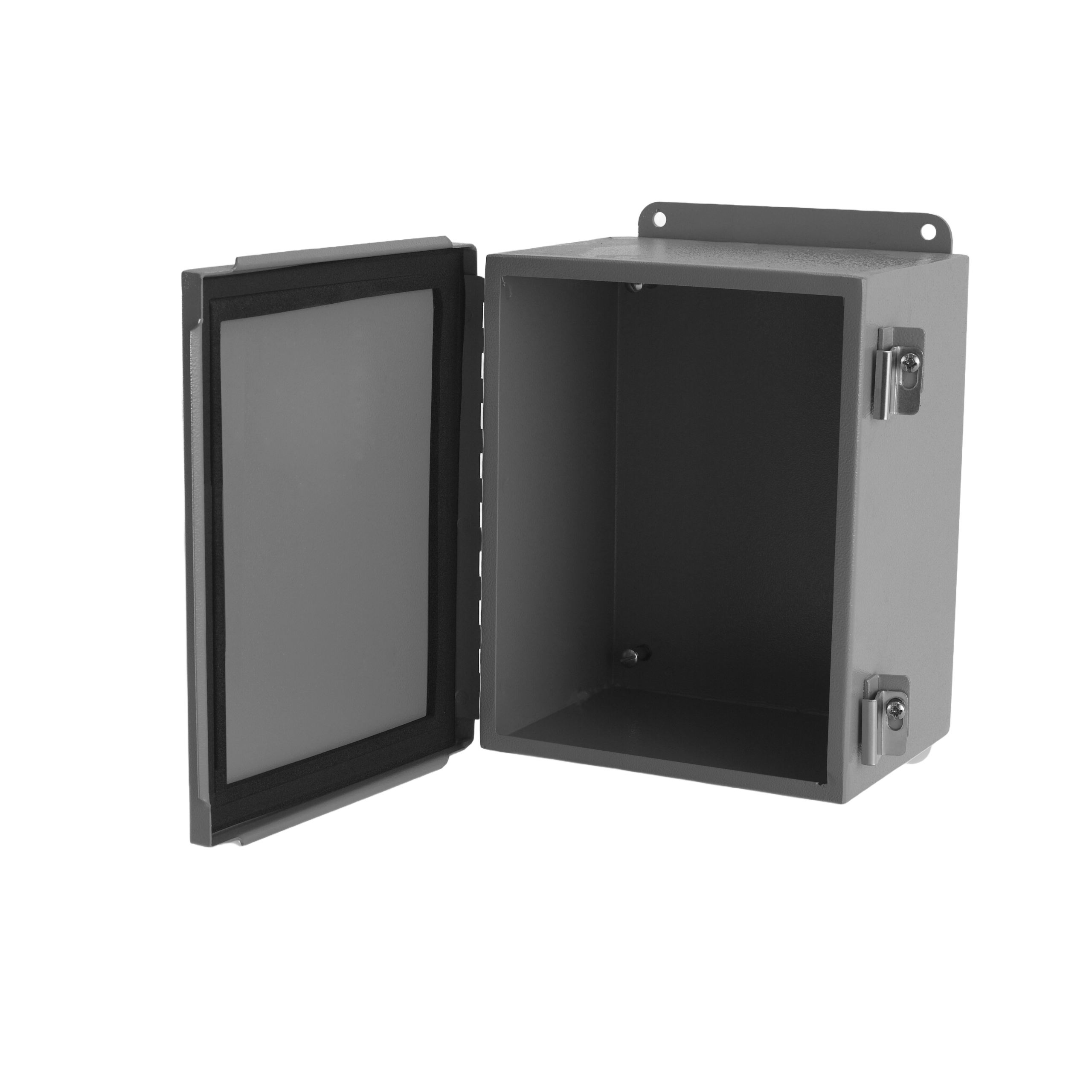

TYPE 4/12 PAINTED JIC CONTINUOUS HINGE ENCLOSURE W/ PANEL

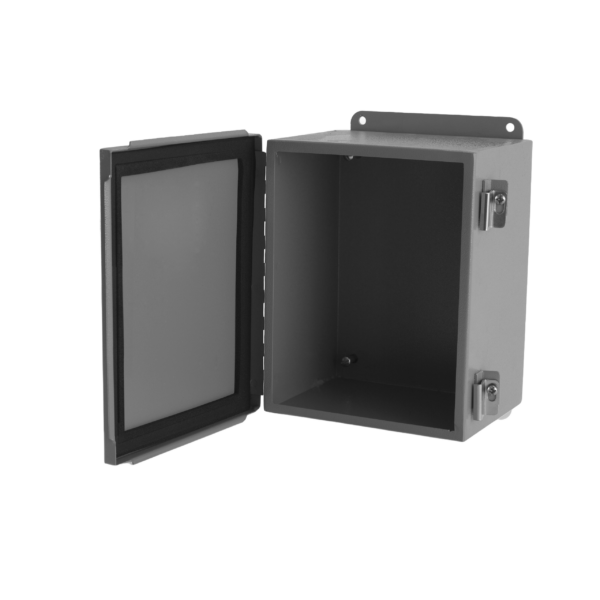

TYPE 4/12 PAINTED JIC CONTINUOUS HINGE ENCLOSURE W/ PANEL - Image 2
,
, ,

TYPE 4/12 PAINTED JIC CONTINUOUS HINGE ENCLOSURE W/ PANEL

Construction:
  • EXTERNAL MOUNTING TABS FOR EASY INSTALLATION
  • SCREW CLAMPS ARE QUICK AND EASY TO OPERATE
  • STEEL, PAINTED WHITE BACK PANEL INCLUDED
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • OIL RESISTANT GASKET
  • CONTINUOUS HINGE
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Satisfies both UL Type 4 and 12 intended uses. Type 4-Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure. Type 12-Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

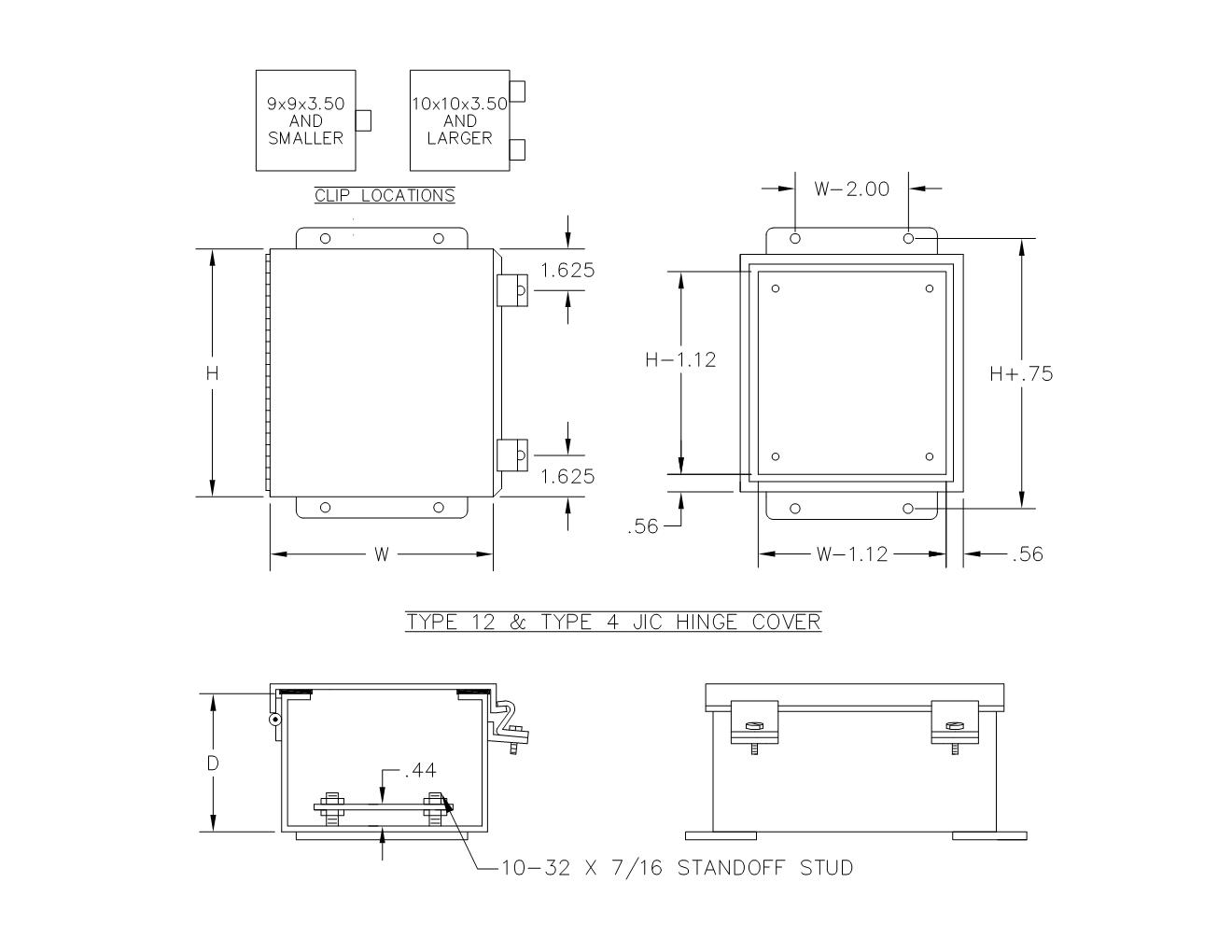

DOWNLOAD SPEC SHEET

SKU: JHN412 Categories: , ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
4x4x3JH443N4123 lbs806101029892
6x4x3JH643N4124 lbs806101029908
4x4x4JH444N4123 lbs806101029915
6x4x4JH644N4124 lbs806101029922
6x6x4JH664N4125 lbs806101029939
8x6x4JH864N4126 lbs806101029946
8x8x4JH884N4128 lbs806101029953
12x6x4JH1264N4129 lbs806101029977
10x8x4JH1084N4129 lbs806101029960
10x10x4JH10104N41210 lbs
12x12x4JH12124N41214 lbs
12x10x5JH12105N41213 lbs806101029984
6x6x6JH666N4127 lbs
8x6x6JH866N4128 lbs
8x8x6JH886N4129 lbs806101031321
10x8x6JH1086N41211 lbs806101029991
10x10x6JH10106N41212 lbs806101030003
12x12x6JH12126N41215 lbs806101030010
14x12x6JH14126N41217 lbs806101030027
16x14x6JH16146N41220 lbs806101030034
10x10x8JH10108N41214 lbs
12x10x8JH12108N41216 lbs806101030041
12x12x8JH12128N41218 lbs806101030324
14x12x8JH14128N41220 lbs806101030058
16x14x8JH16148N41224 lbs806101030065
12x12x10JH121210N41220 lbs
16x14x10JH161410N41227 lbs806101030072
12x12x12JH121212N41222 lbs
