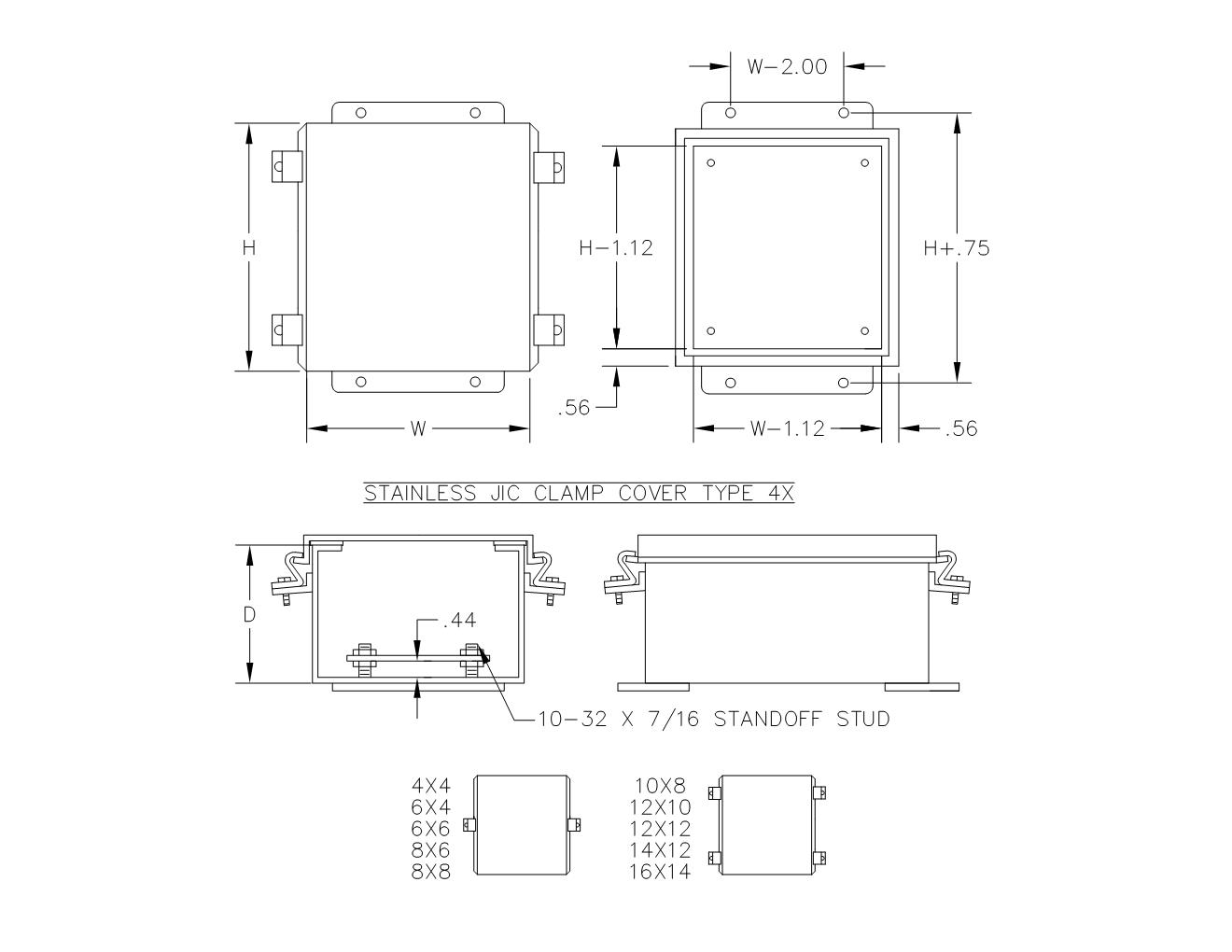

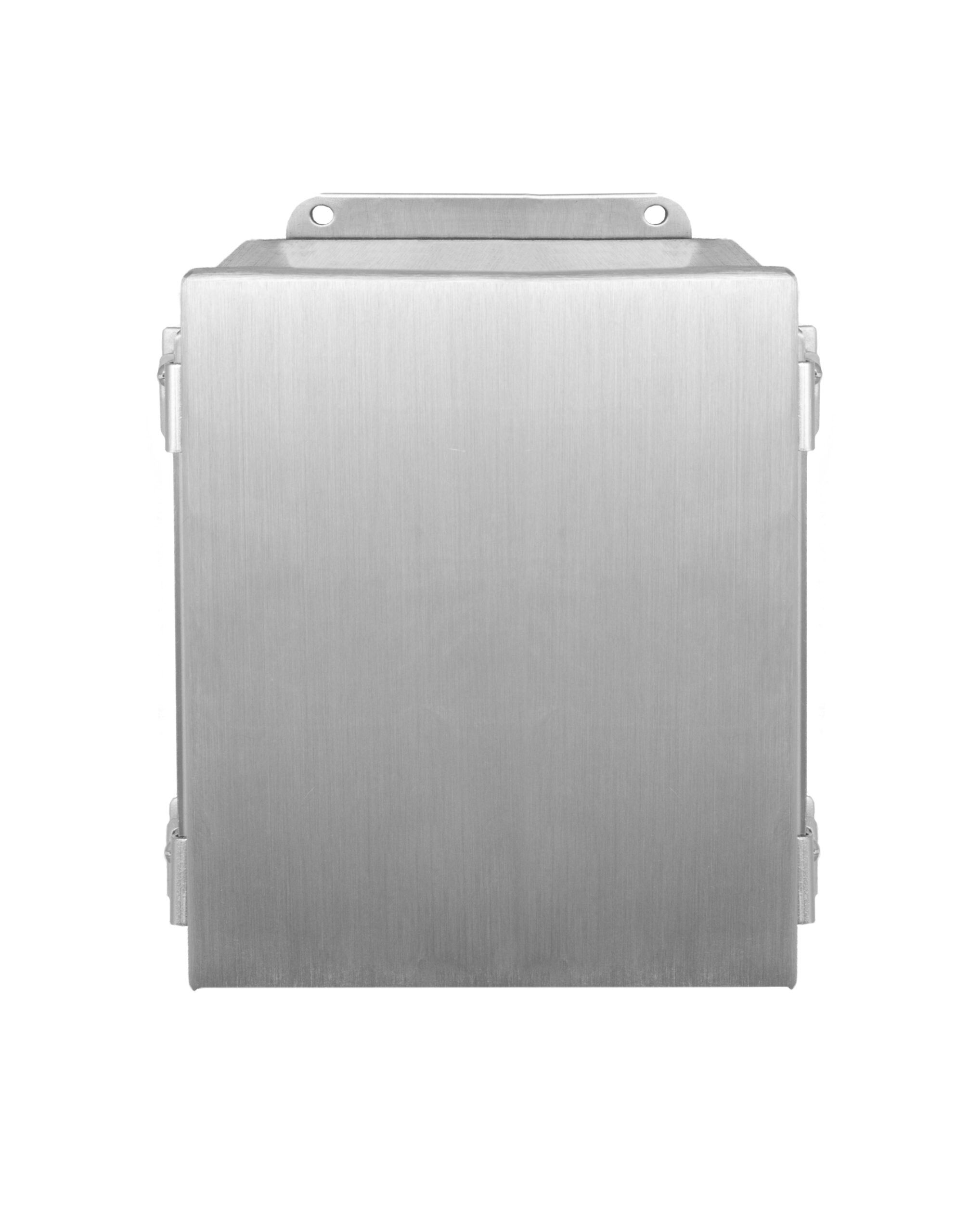

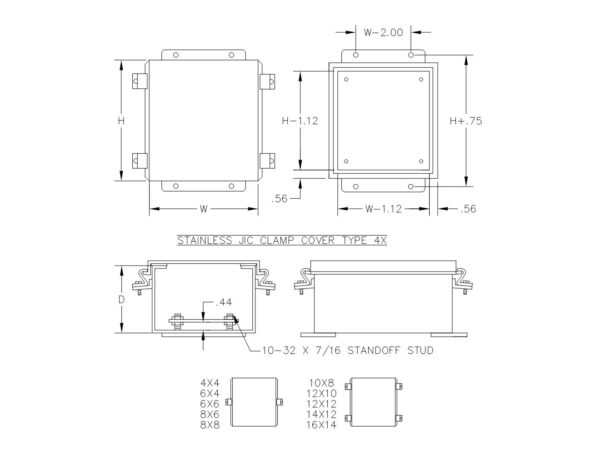

TYPE 4X 304 STAINLESS STEEL JIC CLAMP COVER BOX
Construction:- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- CODE GAUGE TYPE 304 STAINLESS STEEL
- STAINLESS STEEL SCREW CLAMPS ARE QUICK AND EASY TO OPERATE
- STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
- OIL RESISTANT GASKET
- NUMBER 3 BRUSHED FINISH
Satisfies both UL Type 4X and 12 intended uses. Type 4X-Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion. Type 12-Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4x3 | SJCC443N4X12 | 3 lbs | 806101018711 |
| 6x4x4 | SJCC644N4X12 | 4 lbs | 806101018728 |
| 6x6x4 | SJCC664N4X12 | 5 lbs | 806101018735 |
| 8x6x4 | SJCC864N4X12 | 6 lbs | 806101018742 |
| 12x10x6 | SJCC12106N4X12 | 15 lbs | 806101018766 |
| 14x12x6 | SJCC14126N4X12 | 19 lbs | 806101018773 |
| 16x14x6 | SJCC16146N4X12 | 23 lbs | 806101018780 |
