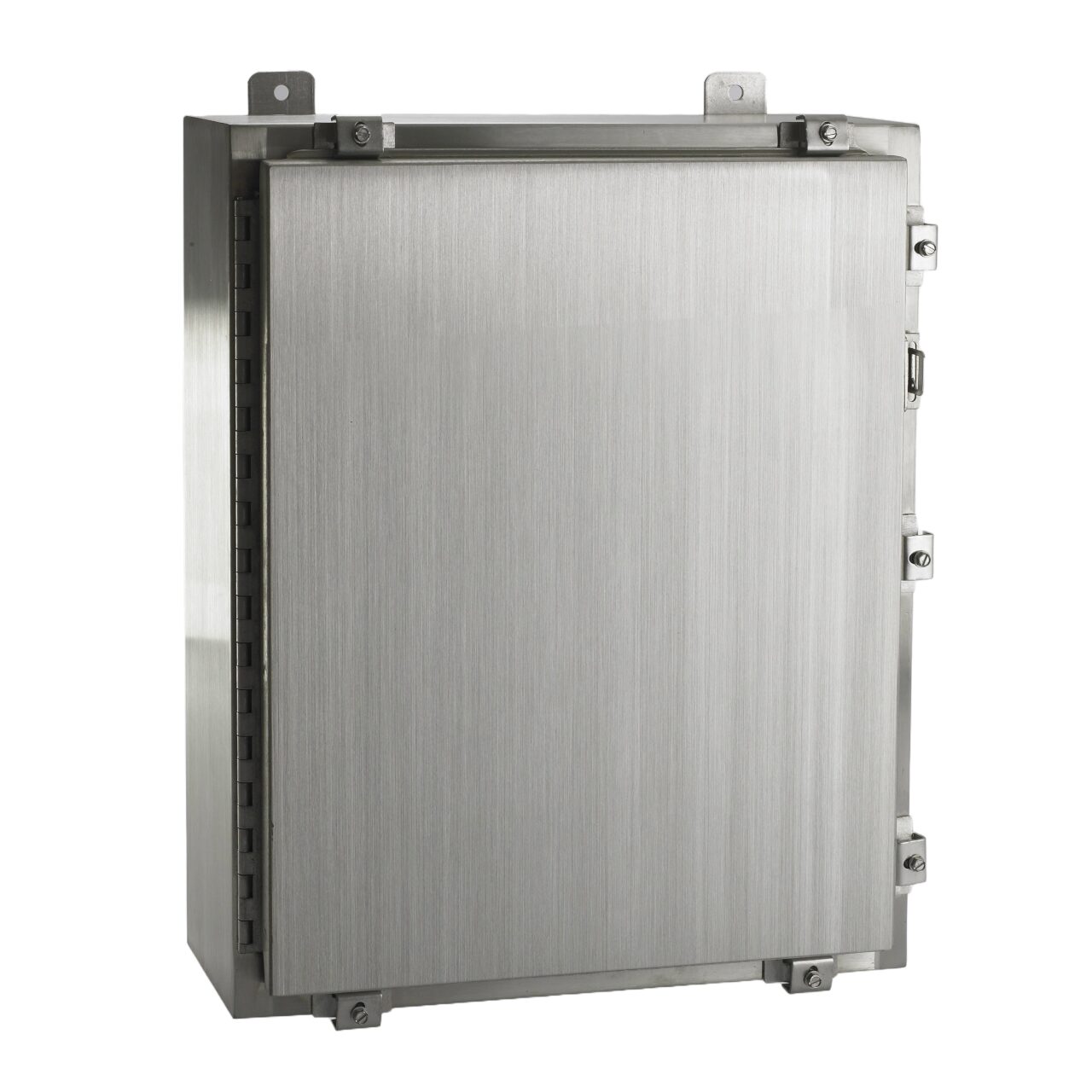

TYPE 4X CONTINUOUS HINGE 304 STAINLESS STEEL SINGLE DOOR WALL MOUNT HINGED COVER ENCLOSURE W/ CLAMPS
TYPE 4X CONTINUOUS HINGE 304 STAINLESS STEEL SINGLE DOOR WALL MOUNT HINGED COVER ENCLOSURE W/ CLAMPS - Image 2
,

TYPE 4X CONTINUOUS HINGE 304 STAINLESS STEEL SINGLE DOOR WALL MOUNT HINGED COVER ENCLOSURE W/ CLAMPS

Construction:
  • OIL RESISTANT GASKET
  • STUDS PROVIDED FOR MOUNTING OPTIONAL BACK PANEL
  • TONGUE AND HASP FOR PAD LOCKING
  • STAINLESS STEEL CONTINUOUS HINGE
  • CODE GAUGE TYPE 304 STAINLESS STEEL
  • SEAMS CONTINUOULSLY WELDED AND GROUND SMOOTH
  • STAINLESS STEEL SCREWS AND CLAMPS ON THREE SIDES OF COVER ASSURE WATERTIGHT SEAL
Finish:
  • NUMBER 3 BRUSHED FINISH

Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.

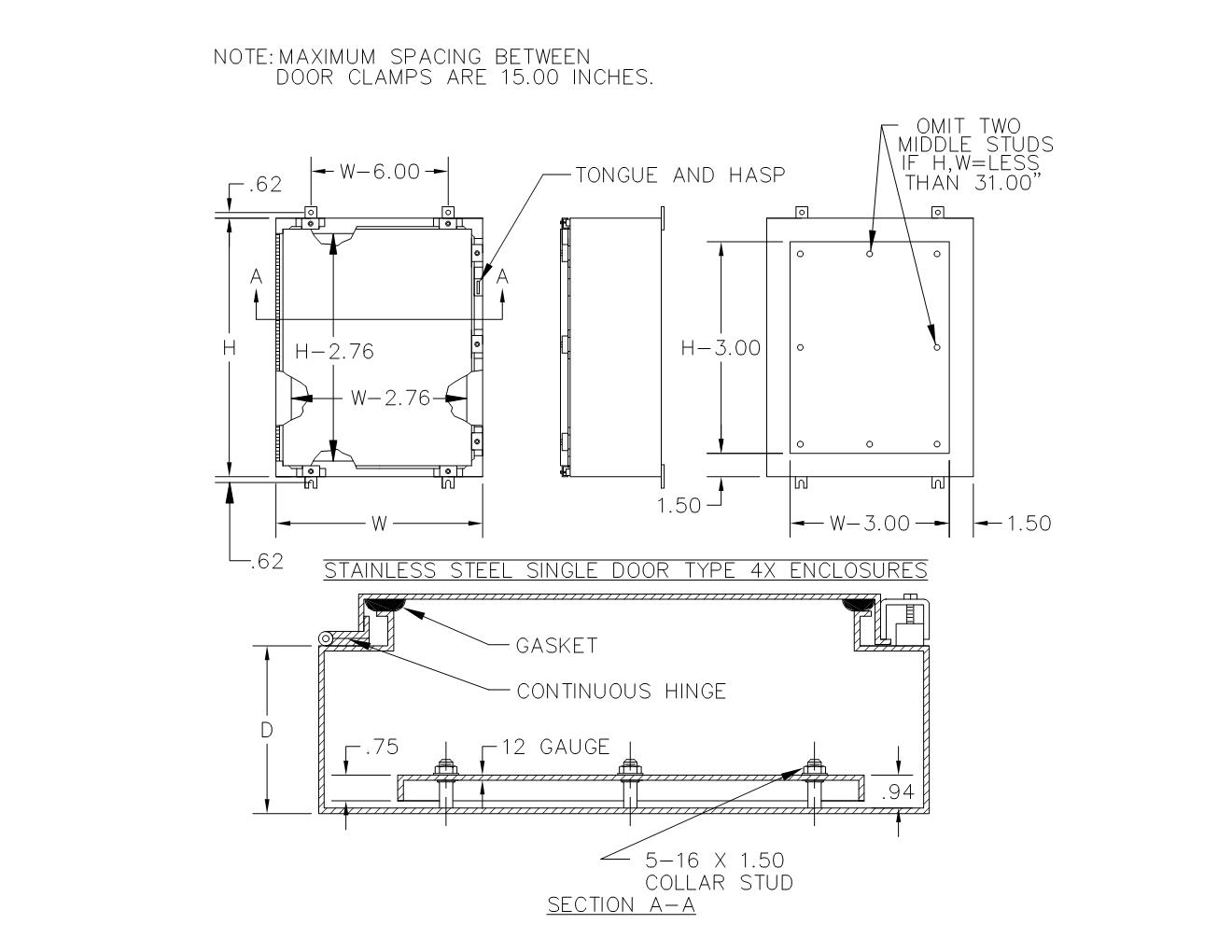

DOWNLOAD SPEC SHEET 30″ WIDE AND SMALLER
 DOWNLOAD SPEC SHEET 31″ WIDE AND LARGER

SKU: SN4X Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
16x12x6S16126N4X22 lbs806101018872
16x16x6S16166N4X26 lbs806101018889
18x18x6S18186N4X31 lbs806101029854
20x16x6S20166N4X31 lbs806101018896
20x20x6S20206N4X36 lbs806101018902
24x24x6S24246N4X48 lbs806101018919
16x12x8S16128N4X24 lbs806101018926
16x16x8S16168N4X30 lbs806101029755
18x18x8S18188N4X35 lbs806101030270
20x16x8S20168N4X34 lbs806101018933
20x20x8S20208N4X41 lbs806101030287
24x16x8S24168N4X40 lbs806101018940
24x20x8S24208N4X46 lbs806101018957
24x24x8S24248N4X53 lbs806101018964
30x20x8S30208N4X55 lbs806101018988
24x30x8S24308N4X63 lbs806101018971
30x24x8S30248N4X63 lbs806101018995
36x24x8S36248N4X73 lbs806101019008
36x30x8S36308N4X87 lbs806101019015
42x36x8S42368N4X127 lbs806101019022
48x36x8S48368N4X127 lbs806101019039
20x16x10S201610N4X36 lbs806101019046
24x20x10S242010N4X51 lbs806101019053
24x24x10S242410N4X58 lbs806101030294
36x24x10S362410N4X79 lbs806101019060
36x30x10S363010N4X93 lbs806101019077
42x30x10S423010N4X108 lbs806101019084
24x24x12S242412N4X62 lbs806101019091
30x24x12S302412N4X73 lbs806101019107
36x30x12S363012N4X99 lbs806101019114
36x36x12S363612N4X114 lbs806101019121
48x36x12S483612N4X143 lbs806101019138
60x36x12S603612N4X173 lbs806101019145
