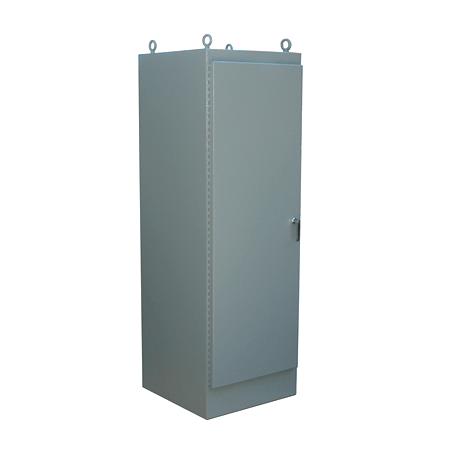

TYPE 12 PAINTED FREESTANDING SINGLE DOOR ENCLOSURE W/ 3 POINT LATCH & KEYLOCKING/PADLOCKING HANDLE

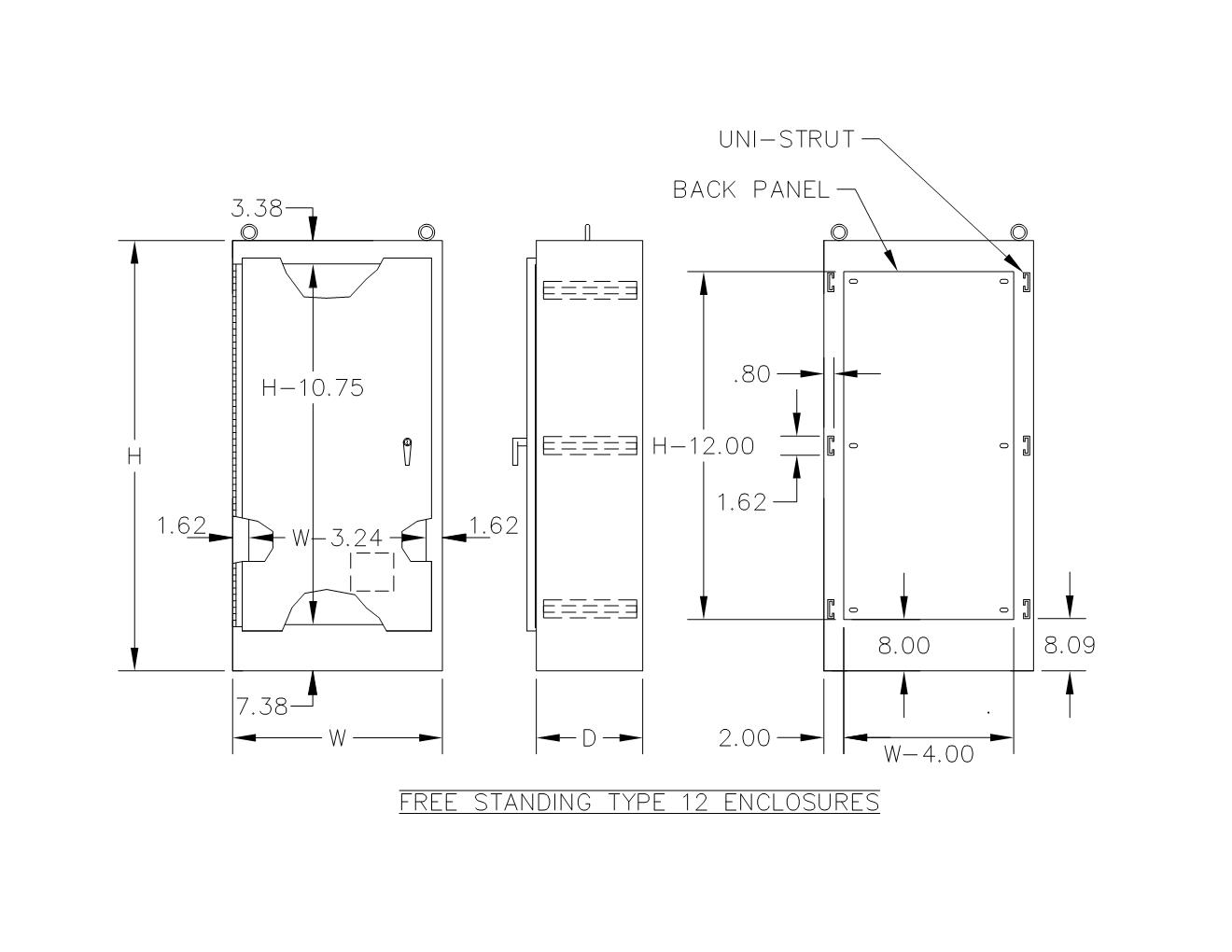

TYPE 12 PAINTED FREESTANDING SINGLE DOOR ENCLOSURE W/ 3 POINT LATCH & KEYLOCKING/PADLOCKING HANDLE - Image 2
,

TYPE 12 PAINTED FREESTANDING SINGLE DOOR ENCLOSURE W/ 3 POINT LATCH & KEYLOCKING/PADLOCKING HANDLE

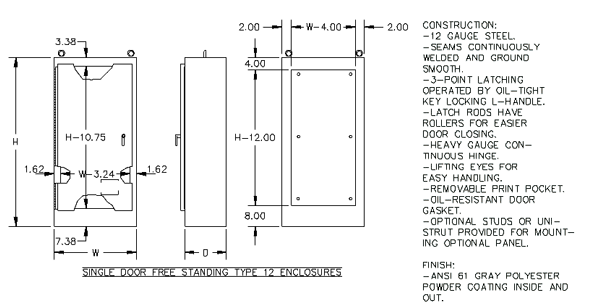

Construction:
  • UNI-STRUT PROVIDED FOR MOUNTING OPTIONAL PANEL
  • OIL-RESISTANT DOOR GASKET
  • LIFTING EYES FOR EASY HANDLING
  • 3 POINT LATCHING MECHANISM OPERATED BY KEYLOCKING / PADLOCKING L-HANDLE
  • PRINT POCKET
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • 12 GAUGE PAINT GRIP GALVANNEAL STEEL
  • HEAVY GAUGE CONTINUOUS HINGE
  • LATCH RODS HAVE ROLLERS FOR EASIER DOOR CLOSING
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

DOWNLOAD SPEC SHEET

SKU: FN12 Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
72x24x18F722418N12234 lbs806101018162
72x30x18F723018N12268 lbs806101018179
72x36x18F723618N12303 lbs806101018186
90x36x20F903620N12405 lbs806101018193
72x24x24F722424N12270 lbs806101018209
72x30x24F723024N12307 lbs806101018216
72x36x24F723624N12344 lbs806101018223
90x36x24F903624N12414 lbs806101018230
72x24x30F722430N12305 lbs806101018247
72x36x30F723630N12384 lbs806101018254
72x24x36F722436N12341 lbs806101018261
72x36x36F723636N12425 lbs806101018278
90x36x36F903636N12509 lbs806101018285
