Wireway Fittings, Type 1

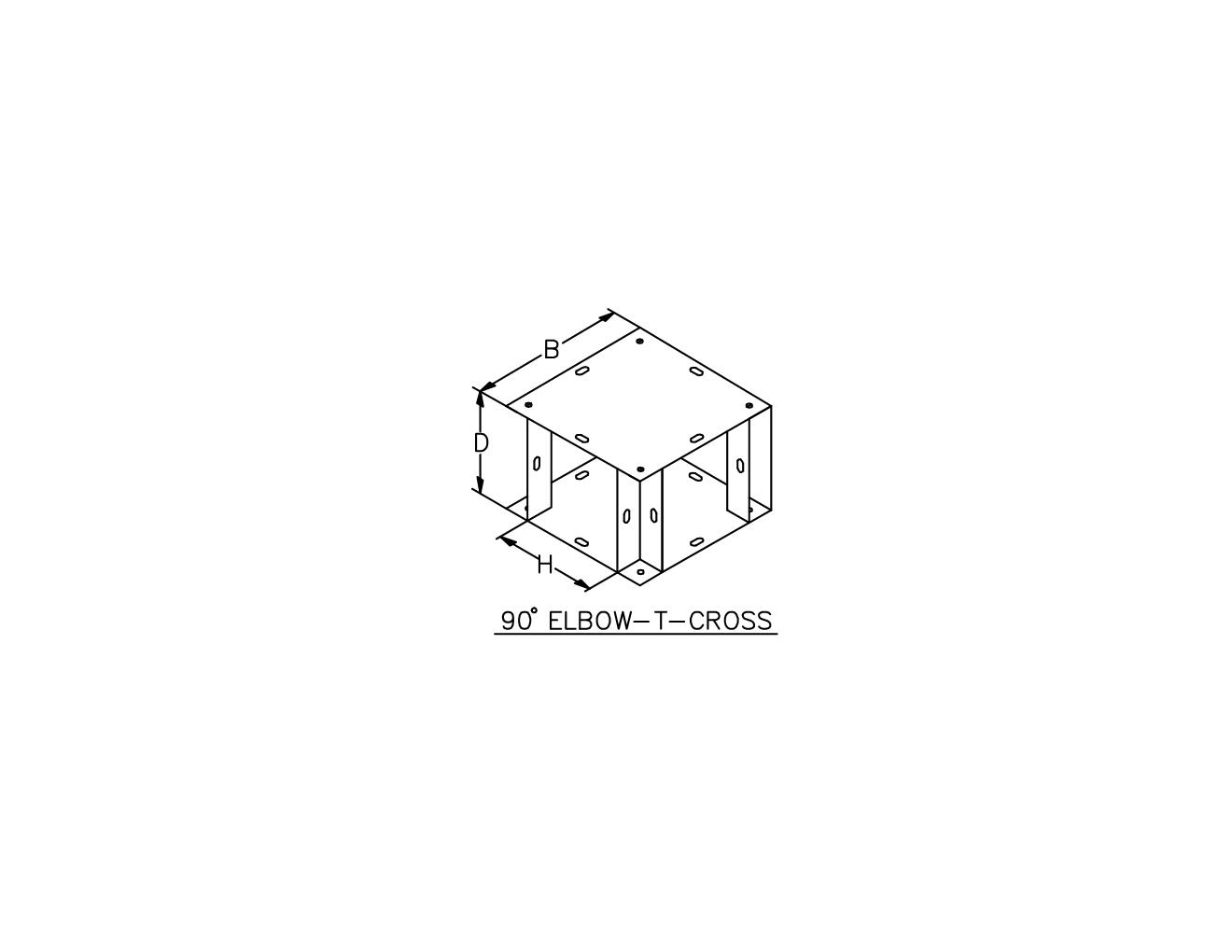

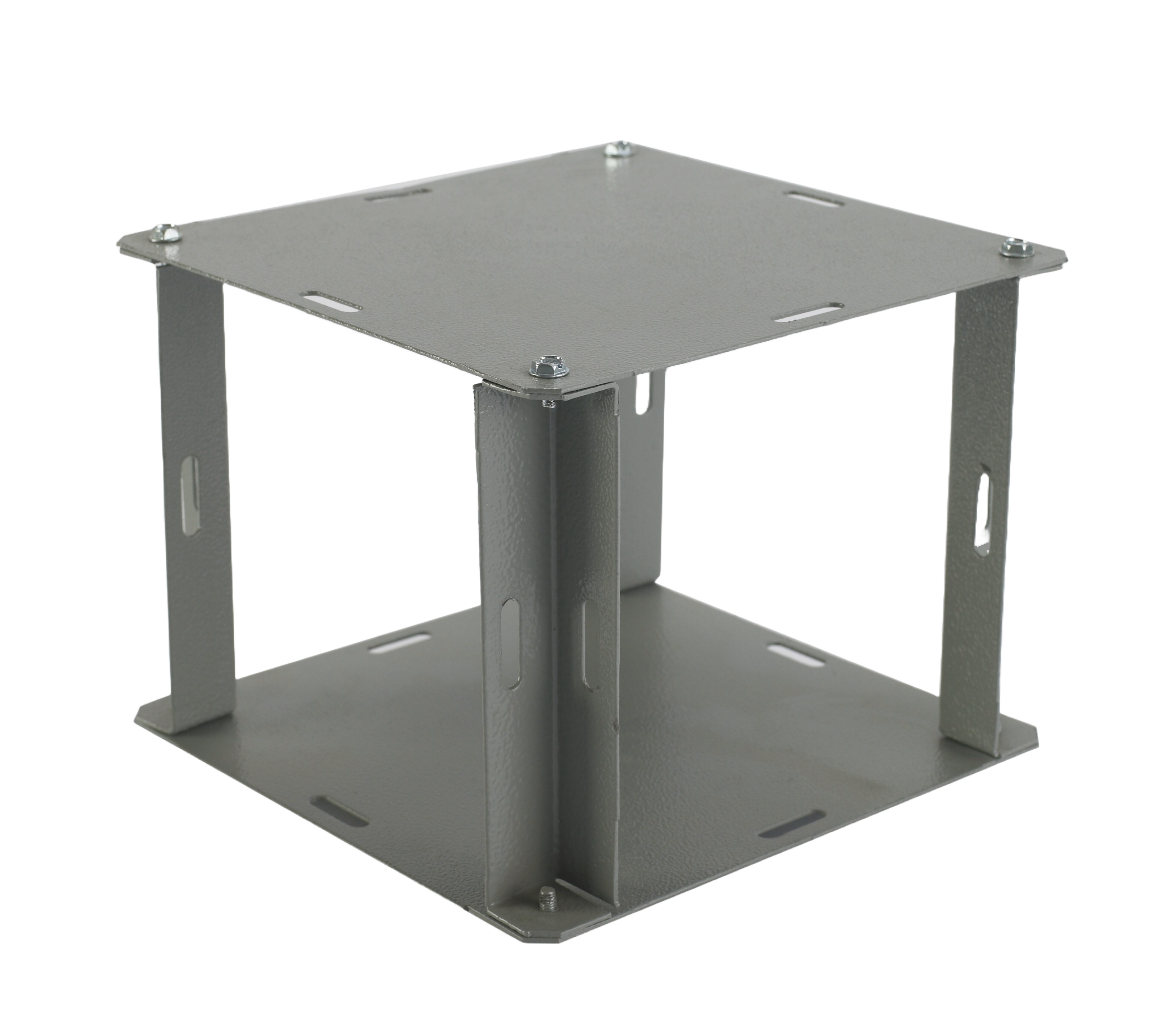

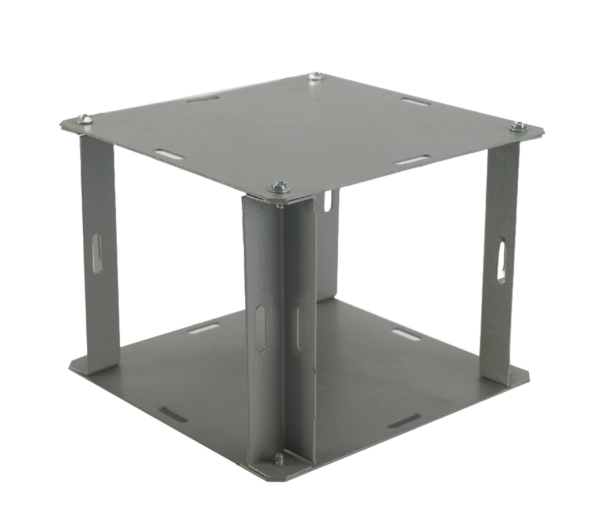

TYPE 1 PAINTED 90 TEE CROSS FOR WIREWAY
Construction:- REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS
- THIS FITTING CAN BE OPENED ON ANY SIDE TO PERMIT THE LAYING IN OF ENTIRE RUNS OF WIRING
- CODE GAUGE A-60 GALVANIZED STEEL
- FOUR-WAY JUNCTION
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-90TCP | 5 lbs | 806101024552 |
| 8x8 | 8-90TCP | 12 lbs | 806101024750 |
| 10x10 | 10-90TCP | 18 lbs | 806101024859 |
| 12x12 | 12-90TCP | 24 lbs | 806101024958 |
