Wireway Fittings, Type 1

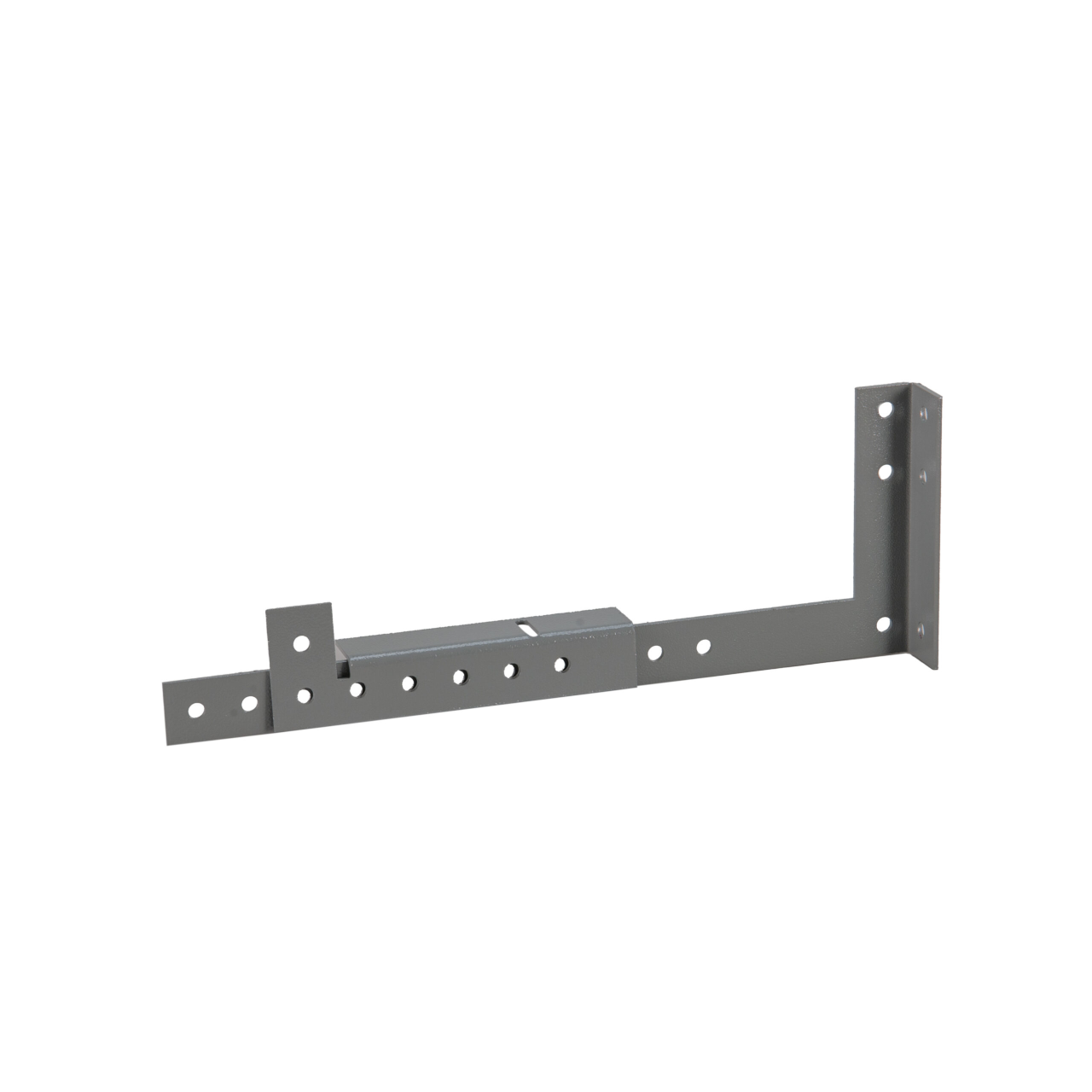

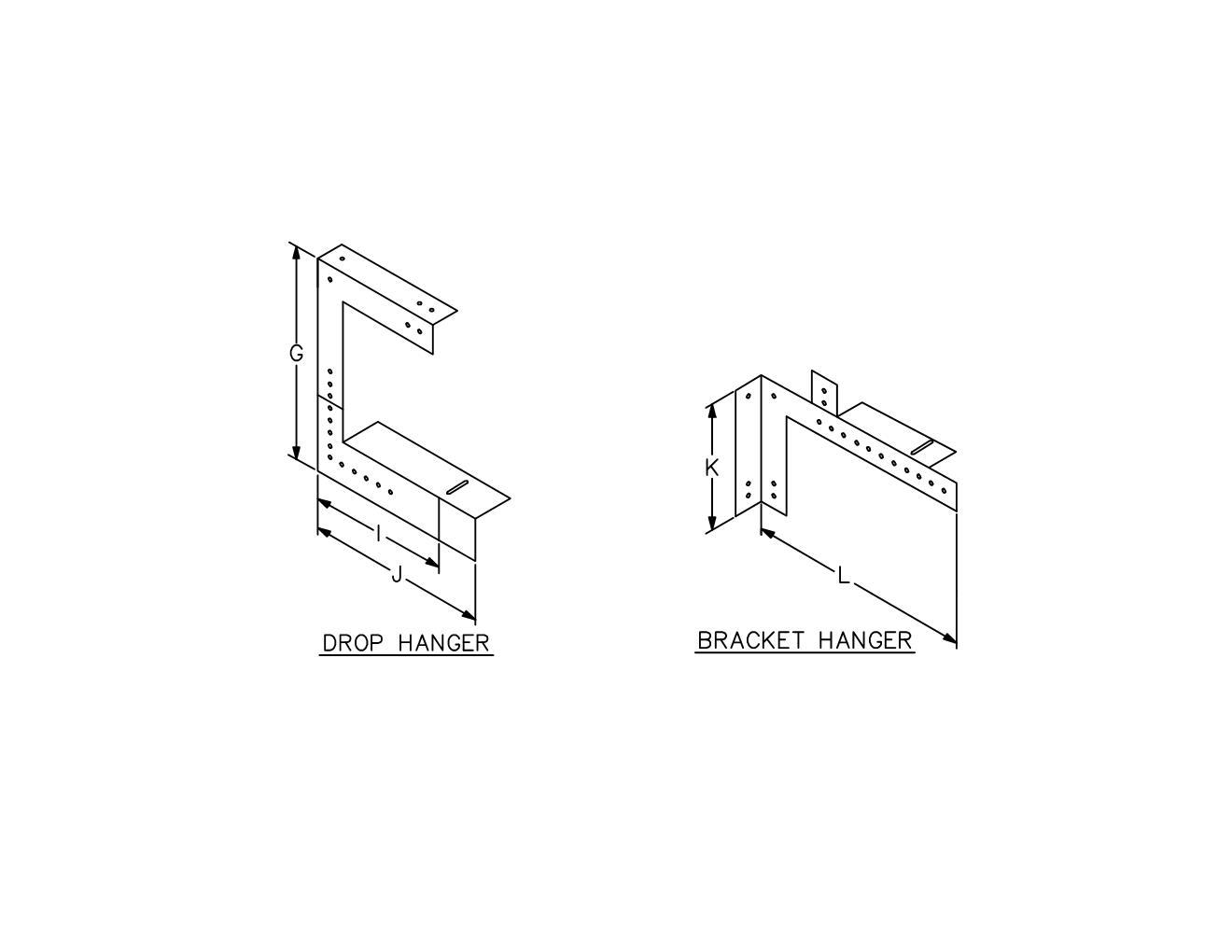

TYPE 1 PAINTED DROP & BRACKET HANGER FOR WIREWAY
Construction:- 12 GAUGE PAINT GRIP GALVANIZED STEEL
- FOR DROP/SUSPENDED OR WALL MOUNT APPLICATION
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-HP | 2 lbs | 806101024606 |
| 6x6 | 6-HP | 2 lbs | 806101024705 |
| 8x8 | 8-HP | 3 lbs | 806101024804 |
| 10x10 | 10-HP | 5 lbs | 806101024903 |
| 12x12 | 12-HP | 6 lbs | 806101025009 |
