Wireway Fittings, Type 1

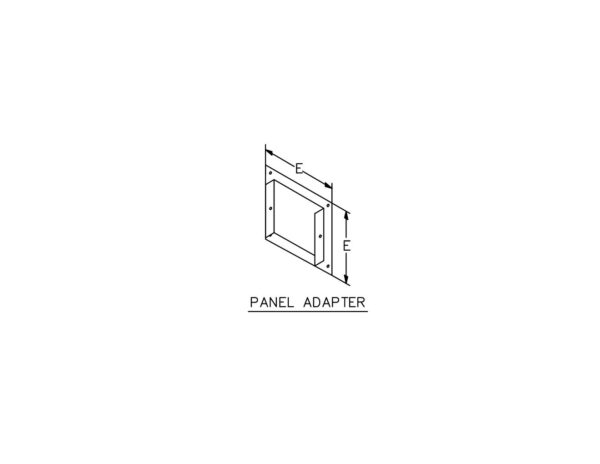

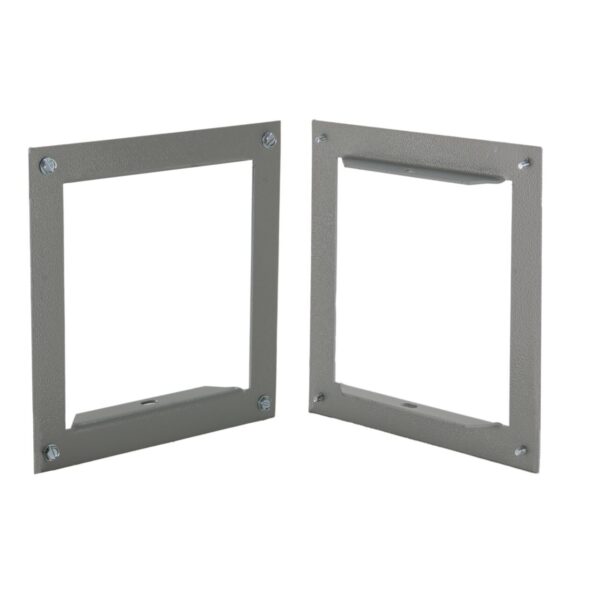

TYPE 1 PAINTED PANEL ADAPTER FOR WIREWAY
Construction:- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- THE PURPOSE OF THE PANEL ADAPTER IS TO CONNECT THE WIREWAY TO AN EXISTING ENCLOSURE OR PIECE OF GEAR.
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-PAP | 1 lbs | 806101024583 |
| 6x6 | 6-PAP | 2 lbs | 806101024682 |
| 8x8 | 8-PAP | 2 lbs | 806101024781 |
| 10x10 | 10-PAP | 2 lbs | 806101024880 |
| 12x12 | 12-PAP | 3 lbs | 806101024989 |
