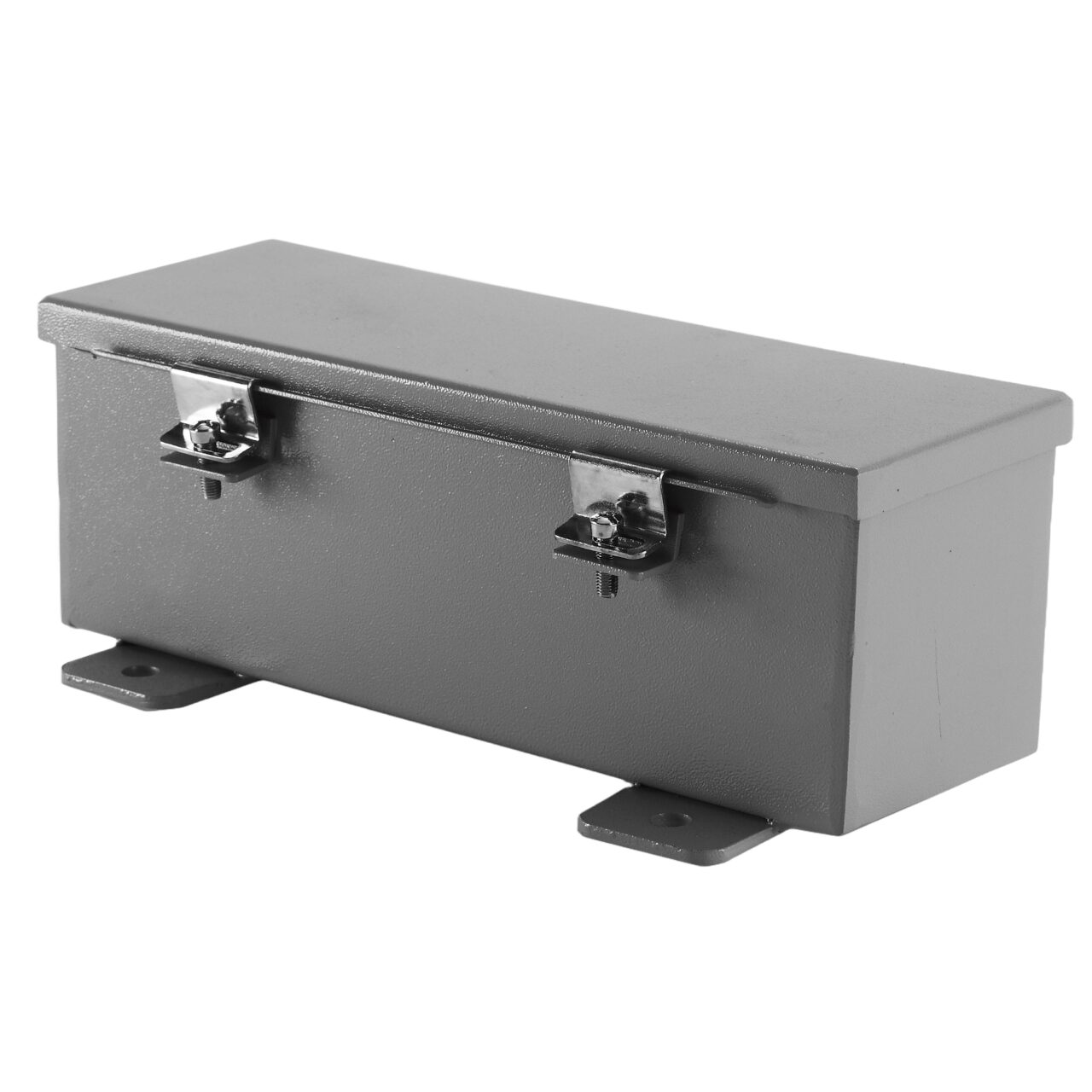

TYPE 12 PAINTED JIC-HINGED TROUGH

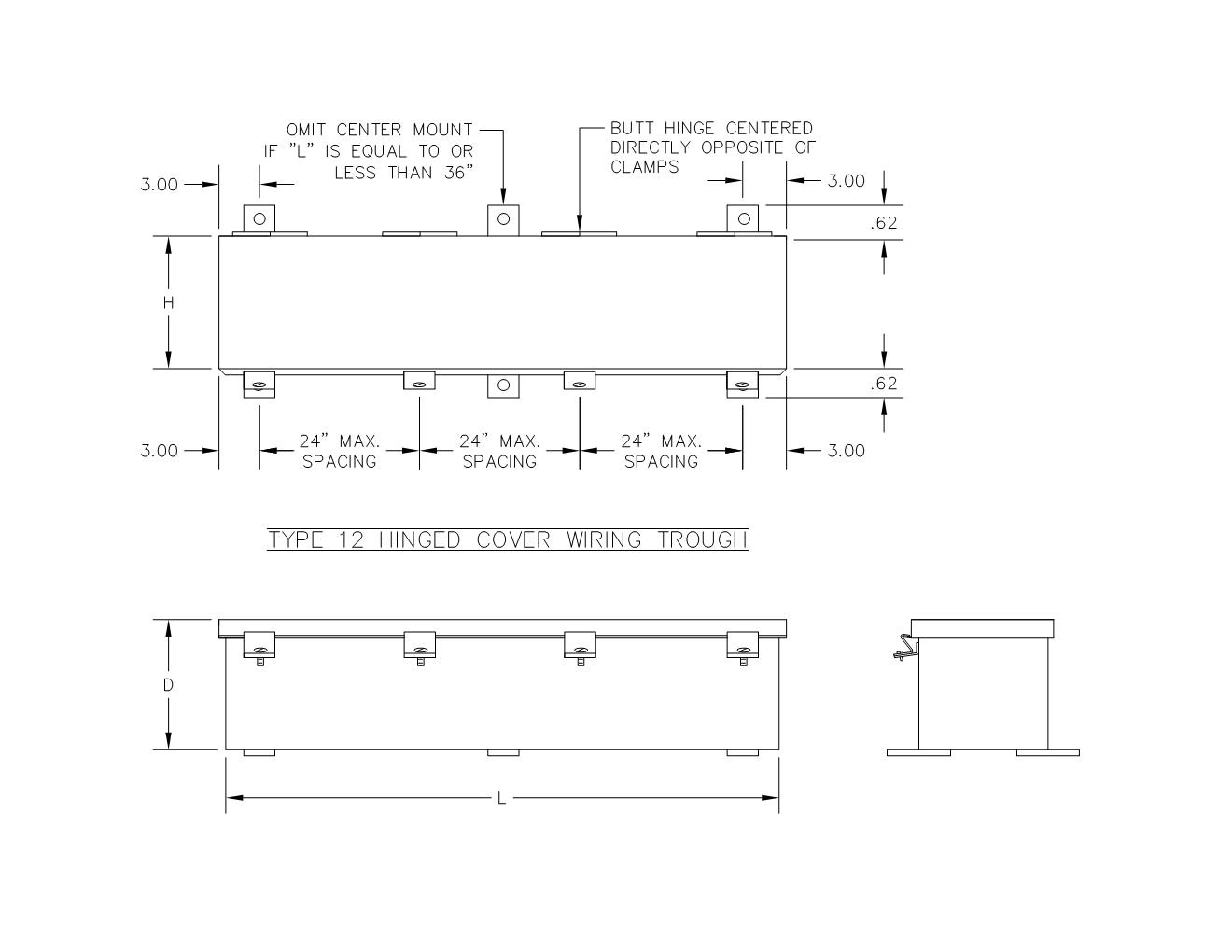

TYPE 12 PAINTED JIC-HINGED TROUGH - Image 2
,

TYPE 12 PAINTED JIC-HINGED TROUGH

Construction:
  • BUTT HINGES
  • SCREW CLAMPS ARE QUICK AND EASY TO OPERATE
  • EXTERNAL MOUNTING TABS FOR EASY INSTALLATION
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • OIL RESISTANT GASKET
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

DOWNLOAD SPEC SHEET

SKU: JO Categories: ,

For large quantities or custom sizes call factory
Trough Size LxHxDCatalog NumberWeightUPC_12Digit
12x4x41-44JO6 lbs806101020264
24x4x42-44JO13 lbs806101020271
36x4x43-44JO15 lbs806101020288
48x4x44-44JO21 lbs806101020295
60x4x45-44JO26 lbs806101020301
72x4x46-44JO31 lbs806101020318
12x6x61-66JO9 lbs806101020325
24x6x62-66JO17 lbs806101020332
36x6x63-66JO24 lbs806101020349
48x6x64-66JO31 lbs806101020356
60x6x65-66JO38 lbs806101020363
72x6x66-66JO42 lbs806101020370
12x8x81-88JO12 lbs806101020387
24x8x82-88JO22 lbs806101020394
36x8x83-88JO31 lbs806101026938
48x8x84-88JO41 lbs806101026945
60x8x85-88JO50 lbs806101020424
72x8x86-88JO59 lbs
96x8x88-88JO77 lbs
24x12x122-1212JO37 lbs806101020431
36x12x123-1212JO41 lbs806101020448
48x12x124-1212JO62 lbs806101020455
60x12x125-1212JO76 lbs806101020462
72x12x126-1212JO91 lbs
