ELECTRICAL ENCLOSURES

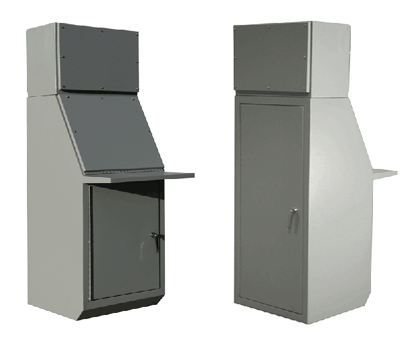

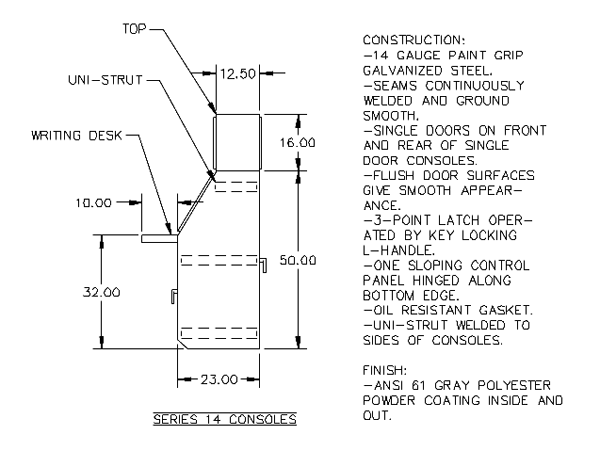

Type 12 - Series 14 Consoles and Accessories


Series 14 Consoles Cut Sheet - 24" widepdf logoSeries 14 Consoles Cut Sheet - 36" widepdf logoSeries 14 Consoles Cut Sheet - 48" widepdf logoSeries 14 Consoles Cut Sheet - 60" widepdf logoSeries 14 Consoles Cut Sheet - 72" widepdf logo
Corresponding Catalog Pagepdf logo



for large quantities call factory --- for custom sizes call factory
Height" Width" Depth" Catalog Number Description List Price Weight UPC_12Digit
50 24 23 EB1424B PAINTED SERIES 14 CONSOLE TYPE 12   181 806101021490
      EB1424P PAINTED SERIES 14 CONSOLE FULL PANEL TYPE 12   24 806101021537
      EB1424P2 PAINTED SERIES 14 CONSOLE HALF PANEL TYPE 12   26 806101021520
      EB1424SP PAINTED SERIES 14 CONSOLE SWING OUT PANEL TYPE 12   18 806101021513
16 24 12.5 EB1424T PAINTED SERIES 14 CONSOLE TOP TYPE 12   45 806101021506
      EB1424W PAINTED SERIES 14 CONSOLE WRITING DESK TYPE 12   10 806101021544

50 36 23 EB1436B PAINTED SERIES 14 CONSOLE TYPE 12   235 806101021551
      EB1436P PAINTED SERIES 14 CONSOLE FULL PANEL TYPE 12   44 806101021599
      EB1436P2 PAINTED SERIES 14 CONSOLE HALF PANEL TYPE 12   34 806101021582
      EB1436SP PAINTED SERIES 14 CONSOLE SWING OUT PANEL TYPE 12   39 806101021575
16 36 12.5 EB1436T PAINTED SERIES 14 CONSOLE TOP TYPE 12   62 806101021568
      EB1436W PAINTED SERIES 14 CONSOLE WRITING DESK TYPE 12   12 806101021605

50 48 23 EB1448B PAINTED SERIES 14 CONSOLE TYPE 12   290 806101021612
      EB1448P PAINTED SERIES 14 CONSOLE FULL PANEL TYPE 12   57 806101026570
      EB1448P2 PAINTED SERIES 14 CONSOLE HALF PANEL TYPE 12   43 806101021636
16 48 12.5 EB1448T PAINTED SERIES 14 CONSOLE TOP TYPE 12   79 806101021629
      EB1448W PAINTED SERIES 14 CONSOLE WRITING DESK TYPE 12   20 806101021650

50 60 12.5 EB1460B PAINTED SERIES 14 CONSOLE TYPE 12   311 806101021667
      EB1460P PAINTED SERIES 14 CONSOLE FULL PANEL TYPE 12   77 806101021698
      EB1460P2 PAINTED SERIES 14 CONSOLE HALF PANEL TYPE 12   42 806101021681
16 60 12.5 EB1460T PAINTED SERIES 14 CONSOLE TOP TYPE 12   96 806101021674
      EB1460W PAINTED SERIES 14 CONSOLE WRITING DESK TYPE 12   20 806101021704

50 72 23 EB1472B PAINTED SERIES 14 CONSOLE TYPE 12   383 806101021711
      EB1472P PAINTED SERIES 14 CONSOLE FULL PANEL TYPE 12   102 806101021742
      EB1472P2 PAINTED SERIES 14 CONSOLE HALF PANEL TYPE 12   50 806101021735
16 72 12.5 EB1472T PAINTED SERIES 14 CONSOLE TOP TYPE 12   112 806101021728
      EB1472W PAINTED SERIES 14 CONSOLE WRITING DESK TYPE 12   25 806101021759
